A mold may look perfect yet fail during production. Small errors can create scrap, delays, and costly repairs. A reliable alloy wheel mold must deliver stable quality across thousands of cycles. In this article, you will learn which design, material, cooling, testing, and service factors matter most.
● A reliable alloy wheel mold must produce consistent dimensions, clean surfaces, and stable internal quality during repeated cycles.
● Mold design must match the chosen process. Low-pressure casting, gravity casting, flow forming, and forging create different thermal and mechanical demands.
● Tool steel quality matters, but heat treatment and component-specific hardness matter just as much.
● Balanced cooling controls solidification, cycle time, porosity risk, and thermal stress inside the mold.
● Precision machining must cover the complete assembly. Accurate individual parts cannot correct poor alignment between cores, inserts, and parting surfaces.
● Simulation helps identify filling, cooling, shrinkage, and deformation risks before full production begins.
● Trial production should confirm repeatability, not just one acceptable sample.
● A capable supplier should support design, simulation, trials, process adjustment, maintenance, and long-term technical improvement.
Reliability is not a single feature. It comes from several connected design and production decisions. Each decision must support stable wheel quality under real factory conditions.
The first casting may meet every requirement. That result does not prove long-term reliability. The mold must maintain rim geometry, spoke details, hub position, and surface quality during repeated heating and cooling.
Production teams should track dimensional movement over several trial cycles. They should also review defect rates after the mold reaches a stable operating temperature. This approach reveals problems hidden during early samples.
Each wheel process places different demands on tooling. A low-pressure mold manages controlled filling and solidification. A gravity mold depends more heavily on natural metal flow and thermal balance.
Flow forming tooling must support precise shaping after the initial wheel blank is produced. Forging tooling faces much higher mechanical forces. A design copied between these processes may create poor results.
Wheel molds experience rapid temperature changes. These cycles can cause surface checking, distortion, cracks, and local hardness loss.
Reliable tooling needs suitable steel, proper heat treatment, and balanced component thickness. Sharp internal corners should be reduced where possible. Smooth transitions help distribute thermal stress more evenly.
Molten aluminum should solidify in a controlled sequence. Poor cooling can leave hot spots around thick spokes, the hub, or heavy rim sections.
Those hot spots may increase shrinkage, porosity, distortion, or unstable cycle times. A reliable mold uses planned cooling zones to guide heat away from critical areas.
Core alignment affects the complete wheel shape. Parting surfaces, side cores, inserts, vents, and locking systems must work together.
Small fitting errors can cause flash, mismatch, metal leakage, or premature wear. They may also shift important wheel features. Reliable tooling controls the complete tolerance chain, not only separate component dimensions.
Every production mold needs maintenance. Reliable designs make that work faster and more predictable.
Wear-prone inserts should be replaceable where practical. Cooling paths should remain accessible for cleaning. Critical surfaces should allow repair without rebuilding major mold sections.
Simulation can predict likely problems. Physical trials confirm how the mold behaves under actual conditions.
A useful trial checks filling, cooling, release, flash, dimensions, and cycle stability. It should use production-like alloy, equipment, and operating settings. Several acceptable castings provide stronger evidence than one successful wheel.
Tip：Request results from consecutive trial cycles, because one good sample cannot prove stable mass production.
A reliable alloy wheel mold begins with the correct process choice. Buyers should compare performance needs, wheel design, volume, equipment, and total cost.
Process | Main tooling demand | Typical advantage | Main reliability concern |
Low-pressure casting | Controlled filling and cooling | Good balance of complexity, quality, and cost | Pressure profile and thermal balance |
Gravity casting | Simple filling and stable heat flow | Lower process complexity | Uneven density and variable filling |
Flow forming | Accurate blank and forming surfaces | Improved rim strength and weight control | Tool alignment and surface wear |
Forging | Extreme strength and load resistance | Dense, strong, lightweight wheels | High forces and tooling cost |

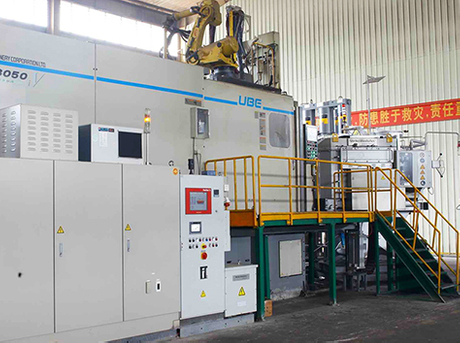

Low-pressure casting pushes molten aluminum into the cavity through controlled pressure. This method supports detailed wheel shapes and more controlled filling than gravity casting.
The mold may use water or air cooling. Water removes heat faster but needs dependable sealing and maintenance. Air cooling is simpler but may provide slower heat removal.
Gravity casting allows molten metal to fill the cavity naturally. It can suit simpler designs and cost-sensitive production.
However, reliable results still require careful gate placement and temperature control. Weak metal flow or uneven cooling may create inconsistent density and internal defects.
Flow forming starts from a cast wheel blank. Rollers then shape and extend the rim while it rotates.
The tooling must maintain accurate surfaces and stable alignment. It also needs enough toughness to resist repeated forming loads. Smooth surfaces help reduce marks and finishing work.
Forging shapes metal under very high force. It can create dense wheels offering strong weight-to-performance results.
The tooling must resist compression, wear, and deformation. Accurate alignment remains critical because small errors can grow under heavy loads. The higher initial investment should be measured against performance goals and production value.
Material selection creates the foundation for mold life. Yet the most expensive steel does not guarantee reliable production.
Different mold sections face different conditions. Core surfaces contact hot aluminum. Side components may face movement, impact, and repeated locking forces.
Engineers should select materials for each function. They must consider thermal fatigue, toughness, wear, machinability, and repair needs. Using one material everywhere can create unnecessary cost or weak points.
A harder surface can resist wear. Excessive hardness may also increase cracking risk. Softer material may improve toughness but deform earlier.
Reliable mold specifications set hardness by location. Heavily loaded or exposed sections may need different targets. Heat treatment must produce stable hardness through the working area, not only at one test point.
Steel certificates only confirm the starting material. They do not prove final mold performance.
Buyers should request heat-treatment records and hardness inspection results. They should also confirm whether surfaces require nitriding or another treatment. Poor heat treatment can weaken otherwise suitable steel.
Note：Ask for material traceability and hardness records before approving the mold for shipment.
Cooling affects wheel quality, cycle time, and mold life. It should be designed around the wheel’s real thermal load.
Thick sections hold heat longer than thin areas. The hub, spokes, and rim may therefore need different cooling intensity.
Simulation can locate likely hot spots before machining begins. Engineers can then adjust channel position, flow, and timing. Standard channel layouts may not fit every wheel design.
Water cooling offers strong heat removal. It can shorten cycles and improve local temperature control. However, leaks, deposits, and blocked channels can interrupt production.
Air cooling has fewer sealing concerns. It may suit areas needing gentler heat removal. The final choice should reflect wheel geometry, alloy, equipment, and output goals.
Fast cooling is not always better. Uneven cooling can create stress, distortion, or unstable microstructure.
The goal is a controlled solidification sequence. Temperatures should remain repeatable across production cycles. Monitoring inlet conditions and mold temperatures helps operators detect changes before defect rates rise.
A sound design can still fail through poor manufacturing. Reliable tooling requires controlled machining, fitting, finishing, and inspection.
Individual mold components may pass inspection yet fail after assembly. Tolerance buildup can shift cores or change cavity dimensions.
Inspection should confirm concentricity, parting-line contact, insert positions, and moving-core travel. A complete assembly report gives more value than separate component records.
A smooth mold surface improves the final wheel appearance. It can also support cleaner release and reduce sticking.
Rough machining marks may transfer onto the wheel. They can increase polishing or grinding after casting. However, polishing must not change important dimensions or edge details.
Reliable suppliers use controlled machining routes and inspection stages. CNC machining, electrical discharge machining, coordinate measurement, and die spotting each serve different purposes.
Digital scheduling and production controls also reduce missed steps. The key question is not how many machines a supplier owns. It is whether the process consistently delivers verified mold dimensions.
Testing should connect design assumptions to factory performance. It reduces risk before the mold enters full production.
Casting simulation can show metal flow, air entrapment, solidification, shrinkage, and hot spots. Structural analysis can reveal deformation or stress risks.
These results should guide practical design changes. Engineers may adjust gates, vents, cooling paths, wall thickness, or local support. Simulation has little value when it becomes only a presentation image.
A trial should use conditions close to the final production process. This includes alloy, mold temperature, pressure settings, cooling method, and cycle sequence.
Testing under easier conditions can hide weaknesses. The mold may later fail when transferred to the buyer’s line. Equipment compatibility should therefore be reviewed before mold design begins.
Clear criteria prevent arguments during approval. Teams should define dimensional limits, surface requirements, internal quality, cycle time, and release behavior.
They should also define how many consecutive wheels must pass. Any correction should be documented and retested. This process creates a useful baseline for future troubleshooting.
Tip：Include cycle time and rejection limits in the acceptance document, not only dimensional tolerances.
Mold reliability also depends on the team behind it. Engineering support can prevent small issues from becoming long production stops.
A promised cycle count means little without operating conditions. Wheel geometry, alloy temperature, cooling, coatings, and maintenance all affect mold life.
Buyers should ask what conditions support the quoted lifespan. They should also define which repairs count as normal maintenance. This makes supplier comparisons more realistic.
Strong support should begin before steel is cut. It may include wheel design review, simulation, material selection, process planning, and equipment checks.
After manufacturing, the supplier should support trials, corrections, operator guidance, and maintenance planning. On-site assistance can be valuable when process settings and mold behavior must be adjusted together.
Before ordering, confirm the process, wheel size, target volume, machine interface, and alloy. Request cooling drawings, material records, tolerances, and trial standards.
Also review spare-part plans and technical response procedures. A clear checklist protects both parties. It turns broad quality claims into measurable obligations.
A reliable alloy wheel mold delivers stable quality across repeated production cycles. Its design must match the casting or forming process. Materials, cooling, precision, and validation must work together. SUPERBAND combines customized wheel tooling, in-house trials, simulation, and technical support. These services help producers reduce risk, improve efficiency, and reach stable production sooner.
A: A reliable alloy wheel mold maintains quality, dimensions, and cycle stability.
A: An alloy wheel mold needs simulation, trials, inspection, and repeated samples.
A: It controls solidification, defects, cycle time, and thermal fatigue.
A: Alloy wheel mold cost depends on process, size, materials, and complexity.
A: It improves alignment, appearance, repeatability, and component life.
A: An alloy wheel mold may flash from wear, misalignment, or poor locking.
