Alloy wheels are integral to modern vehicles, offering a blend of aesthetics, performance, and functionality. The path from the concept of a new alloy wheel design to its mass production involves a series of complex and precise steps. One of the most critical elements in this process is the alloy wheel mold, a tool that defines the wheel's final shape and quality.

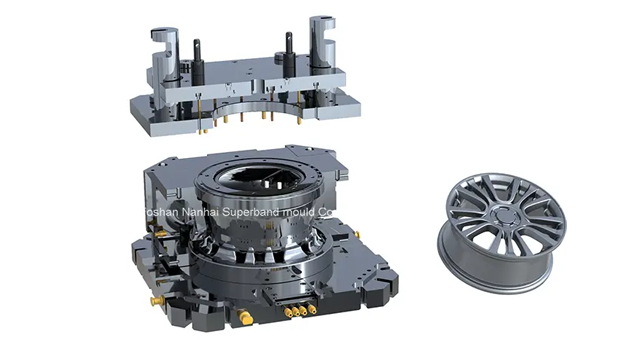

An alloy wheel mold is essentially a tool used in the manufacturing process to create a wheel from molten aluminum. Molds are crucial because they directly impact the wheel's precision, strength, and aesthetic quality. Without high-quality molds, achieving the desired performance characteristics and appearance of alloy wheels would be difficult.
The molding process also affects the cost-efficiency and speed of production. Efficient, durable molds reduce the need for rework and ensure consistent quality across large production runs, which is particularly important in mass production.
The journey of an alloy wheel begins long before the mold is made. During the conceptualization phase, designers and engineers work together to create a wheel that not only meets aesthetic standards but also performs well on the road. Factors like weight, strength, and aerodynamics are considered, in addition to the visual design that will appeal to consumers.
At this stage, the role of molds is not yet critical, but the design of the wheel directly impacts the choice of mold material and molding process.
Wheel Dimensions and Specifications: The size, shape, and load-bearing capacity are determined based on the vehicle type and intended use (e.g., sports cars, luxury vehicles, off-road).
Aesthetic Design: The visual design of the wheel is finalized, including the spoke pattern, finish, and color. Designers focus on creating a wheel that not only performs well but also looks great.
Material Selection: The choice of aluminum alloy is crucial at this stage, as different alloys have distinct characteristics, including strength, lightness, and corrosion resistance.
Once the design is complete, it is time to move on to the engineering phase, where the technical specifications and details are turned into manufacturable designs.
Once the wheel design is conceptualized, it needs to be engineered into a mold design that can be used in the production process. The transition from concept to mold design is where the technical aspects of wheel manufacturing come into play. During this phase, the mold’s structure and material are selected to ensure that it can withstand the stresses of high-temperature aluminum and the repeated casting cycles typical in mass production.
Precision and Detail: The design of the mold must allow for precise detailing, especially for wheels with intricate designs or thin walls. A high-quality mold ensures that every small feature of the wheel, from spoke design to rim curvature, is accurately reproduced.
Thermal Conductivity: Molds need to have excellent heat resistance and thermal conductivity to manage the high temperatures of molten aluminum and ensure uniform cooling. Materials like steel and cast iron are commonly used due to their ability to withstand extreme temperatures.
Wear Resistance: Given the high volume of production, molds must be durable and capable of enduring thousands of casting cycles without significant wear or deformation. Steel molds are often chosen for their long-lasting durability.
The mold is designed with precision and strength in mind, as it will play a significant role in the quality of the final product. Once the mold design is finalized, it is sent for manufacturing.
Before mass production can begin, a prototype wheel is created to test the mold’s effectiveness. During this phase, engineers will pour molten aluminum into the mold to create a sample wheel. This allows them to check the wheel for any defects or flaws in the design, such as issues with metal flow, porosity, or uneven cooling.
Mold Trials: The first test run often involves making several prototype wheels to assess how the mold behaves under real production conditions. Any defects or weaknesses in the mold will be addressed during this phase.
Performance Testing: The prototype wheels undergo rigorous testing, including stress and impact tests, to ensure that they meet the required performance standards.
Surface Finish and Aesthetics: Engineers also inspect the aesthetic qualities of the wheel, ensuring that the mold produces the desired finish. This includes evaluating the smoothness, color, and appearance of the spokes and rim.
If the mold and prototype pass all tests, it moves on to the production phase. However, if any issues are identified, the mold design will be adjusted and tested again to ensure the final product meets expectations.
Once the mold has been tested and approved, the manufacturing process can shift into mass production. In this phase, the mold is used repeatedly to create large volumes of alloy wheels. The role of the mold becomes even more important, as it needs to produce thousands of identical wheels with consistent quality.
High Volume: Mass production typically involves creating large batches of wheels quickly and efficiently. The molds must be able to handle high volumes without degrading in quality or performance.
Casting Process: The casting method chosen—whether low-pressure casting, gravity casting, or flow forming—affects the speed and efficiency of production. The molds must be compatible with the casting method to ensure the wheels are produced efficiently and with minimal defects.
Heat Management: In mass production, managing the temperature of the molten aluminum and the cooling process is crucial for ensuring consistent wheel quality. Molds with excellent thermal conductivity and heat resistance are critical at this stage.
The mold also needs to be able to withstand the wear and tear of high-volume production without requiring frequent maintenance or replacement. This is why selecting the right mold material—such as steel for long-lasting durability—is essential.
After the wheels are produced, they undergo a final inspection process to ensure they meet all quality standards. Molds that produce alloy wheels play a crucial role in the final quality control process.
Dimensional Accuracy: The wheels are measured to ensure they match the specified dimensions and tolerances.
Surface Inspection: The surface finish of the wheels is inspected for defects, such as scratches, uneven coating, or imperfections caused by the mold.
Strength and Durability Tests: The wheels undergo stress testing to ensure they meet the strength requirements needed for safe use on vehicles.
Molds that produce high-quality wheels will minimize defects in the final product, ensuring that the alloy wheels are not only functional but also meet aesthetic and performance standards.
From the initial conceptualization of a wheel design to the mass production of thousands of wheels, alloy wheel molds play a pivotal role in the manufacturing process. They are responsible for ensuring that the final wheels meet the necessary strength, precision, aesthetics, and performance requirements.
A high-quality mold is essential for:
Consistency: It ensures that every wheel produced is identical and meets the required standards.
Efficiency: It reduces production time and cost by enabling high-volume, consistent manufacturing.
Quality: It contributes to the final quality of the wheel, ensuring durability, strength, and visual appeal.
At Foshan Nanhai Superband Mould Co., Ltd., we specialize in providing customized alloy wheel mold solutions for a variety of manufacturing needs. Whether you are looking to produce high-performance alloy wheels, economical wheels, or luxury designs, we offer precision molds that ensure quality from concept to mass production.
If you are looking to create alloy wheels that meet the highest standards, visit www.superbandmold.com to learn more about how we can help bring your vision to life.
