The automotive industry continually strives for advancements in manufacturing processes that improve performance, efficiency, and sustainability. One area where innovation plays a significant role is in the production of chassis structural parts—components that form the backbone of a vehicle's structure and significantly influence its safety, performance, and durability. A key element in the production of these parts is the chassis structural parts mold, a tool used to create the intricate shapes and precise dimensions required for modern vehicle chassis.
The chassis of a vehicle is its frame, the structural base that supports the engine, transmission, suspension, and other essential components. It is responsible for providing strength, rigidity, and safety. Chassis structural parts are components like the frame rails, cross members, and subframes, which make up the vehicle’s skeletal structure. These parts need to be strong yet lightweight, capable of withstanding various forces encountered during operation without compromising vehicle performance.
Manufacturing chassis structural parts requires precise engineering and molding to ensure they meet the necessary strength standards while maintaining lightweight characteristics to improve fuel efficiency and driving dynamics.

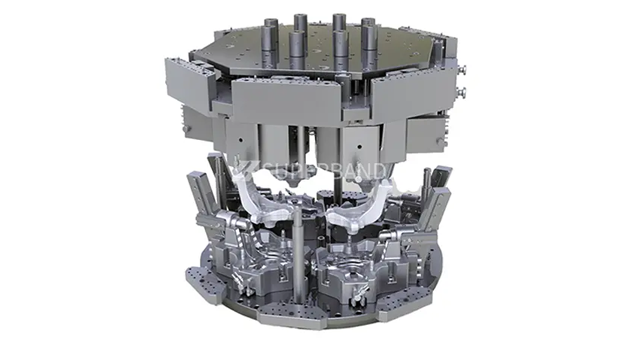

Molds are indispensable in manufacturing chassis structural parts. A mold is essentially a tool used to form the desired shape and dimensions of the part by casting molten material—usually aluminum or steel—into it. The quality of the mold directly impacts the structural integrity, finish, and dimensional accuracy of the final product. Without high-quality molds, the production of high-performance and safe chassis parts would not be possible.
Two of the most commonly used molding methods in chassis structural part production are low-pressure casting and counter pressure casting. These methods are particularly effective when producing large, complex parts that require uniform thickness and high strength-to-weight ratios.
Low-pressure molding is a casting process in which molten metal is introduced into the mold cavity under controlled low pressure (typically between 0.1 to 0.5 MPa). Unlike traditional gravity casting, where the molten metal flows into the mold purely by gravity, low-pressure molding forces the molten metal upwards, ensuring uniform metal flow and minimizing defects like air pockets and porosity.
This method is particularly suited for large chassis parts, such as cross members or subframes, where the metal needs to flow evenly through the mold to ensure consistent wall thickness and a high-quality surface finish. Once the metal cools and solidifies, the part is removed from the mold and undergoes further finishing processes, such as trimming and machining.
Improved Metal Density: The pressure used in low-pressure molding helps achieve better metal density, which improves the part's strength and durability.
Reduced Defects: By minimizing the formation of air pockets and gas porosity, low-pressure molds create parts with fewer defects, leading to higher material integrity.
Faster Production: Low-pressure molding allows for faster filling of molds, reducing the time required for each casting cycle.
Consistency and Precision: This method produces more consistent and precise parts, ensuring uniform thickness and reduced variation in dimensional accuracy.
Low-pressure molding is widely used in the production of various chassis structural parts, including:
Cross Members: Components that provide structural strength and rigidity across the width of the chassis.
Subframes: Parts that support essential vehicle systems like the suspension or engine.
Frame Rails: Longitudinal members that provide overall strength and support to the vehicle’s body.
Counter pressure molding involves filling a mold with molten metal while applying pressure in opposing directions. One side of the mold is filled using low-pressure injection, while the other side is subjected to counter pressure, which can help ensure that the metal is distributed more evenly and prevents the formation of air pockets and voids.
This method works particularly well for producing larger chassis components that require enhanced strength without increasing weight. Counter pressure casting is a more advanced process compared to low-pressure molding and is especially beneficial when dealing with highly complex part designs that need to meet stringent performance requirements.
Enhanced Control Over Metal Flow: The counter pressure applied during the molding process ensures even distribution of molten metal, reducing defects and ensuring uniform material properties.
Improved Mechanical Properties: The combination of pressure and controlled metal flow leads to parts with better tensile strength and resilience, which is especially important for safety-critical components.
Lightweight Construction: Counter pressure molding enables the creation of strong yet lightweight components, improving vehicle performance without sacrificing strength.
Precision and Detail: This method is ideal for producing intricate or complex parts that require precise dimensions.
Chassis Frame Members: These parts provide the main structural integrity of the vehicle's frame, withstanding forces during operation.
Suspension Components: Parts that support the suspension system and contribute to vehicle handling.
Engine Mounts: Components that securely attach the engine to the chassis while minimizing vibrations.
One of the key advantages of working with a mold manufacturer who specializes in customized mold solutions is the ability to tailor molds based on specific customer needs. Customization involves designing and producing molds that align with the customer's casting conditions and production requirements. Factors such as the type of vehicle, the material being cast, and the desired performance standards will influence mold design and material selection.
For example, customers with a high-volume production requirement may need molds with multiple cavities (up to 8 cavities) to maximize throughput and efficiency. Alternatively, customers seeking high-performance components for sports cars or luxury vehicles may require molds that prioritize strength-to-weight ratios and complex geometries.
Optimized Production Efficiency: Custom molds can be designed to meet the unique needs of the customer, increasing production speed and reducing material waste.
Higher Performance Standards: Molds can be fine-tuned to produce parts with enhanced mechanical properties, ensuring the final product meets stringent performance and safety standards.
Tailored Solutions: Custom molds can be made to handle specific alloys, material properties, and casting techniques, ensuring compatibility with the production process.
In addition to material selection and mold design, advanced technology plays a crucial role in the production of high-quality chassis structural parts. The integration of technologies such as 3D printing, CAD/CAM design systems, and simulation software has revolutionized the way molds are designed, manufactured, and tested.
3D Modeling: By using advanced 3D modeling software, mold designs can be simulated and adjusted before actual production, ensuring that the mold performs optimally under real-world conditions.
Finite Element Analysis (FEA): This technology helps assess the structural integrity and thermal performance of the mold, ensuring it can withstand the high pressures and temperatures involved in the casting process.
Before mass production, a mold trial is conducted to verify that the mold design works as expected. This trial involves pouring molten metal into the mold and assessing the flow characteristics, finish quality, and part dimensions. Any necessary adjustments are made before the mold enters full-scale production.
The process of manufacturing chassis structural parts is complex and requires precision at every step. By utilizing advanced techniques like low-pressure casting and counter pressure molding, manufacturers can produce high-quality components that meet the demanding requirements of modern vehicles.
Custom molds designed specifically for the customer’s needs ensure greater efficiency, better performance, and optimized costs. Whether you are producing large-volume, cost-effective parts or high-performance, lightweight components, selecting the right mold material and molding process is crucial for achieving success.
