As the global demand for electric vehicles (EVs) continues to rise, so does the need for more efficient, cost-effective, and high-performance manufacturing processes. One of the key components in electric vehicle (EV) production is the motor housing, a critical part of the electric motor that protects its internal components while ensuring efficient operation. To meet the growing demands for EVs, manufacturers are increasingly turning to advanced molding technologies, such as Four Cavities Low Pressure Die Casting (LPDC), to enhance both the performance and production efficiency of these motor housings.
Low Pressure Die Casting (LPDC) is a sophisticated casting process used to produce high-quality metal components, particularly for applications that require precise dimensions and a smooth surface finish. The primary difference between low-pressure die casting and traditional high-pressure die casting is the way molten metal is introduced into the mold.
In the LPDC process, molten metal is introduced into the mold cavity under controlled low pressure, typically ranging between 0.1 MPa to 0.5 MPa. This process allows the metal to flow more evenly into the mold, reducing the formation of defects like air pockets, voids, and shrinkage. The result is a denser, stronger, and more accurate casting compared to traditional gravity casting or high-pressure die casting methods.
The four-cavity mold is a specific variation of LPDC, designed to increase production efficiency by casting four parts simultaneously in a single mold. This configuration is particularly useful for high-volume production runs, as it significantly reduces cycle times and manufacturing costs.
The electric vehicle industry requires high-quality, lightweight, and durable components to optimize the performance of the motor and extend the lifespan of the vehicle. The motor housing is one such critical part. Motor housings need to be durable enough to protect the motor’s internal components from external forces while ensuring efficient heat dissipation and electrical isolation.
Here are several reasons why the four-cavity LPDC mold is an excellent choice for EV motor housing production:
The four-cavity design allows for casting four parts simultaneously, significantly reducing production time per cycle. This is especially beneficial for large-scale manufacturing, where high throughput is essential to meet demand. Instead of casting one part at a time, manufacturers can produce four parts in the same timeframe, increasing overall production efficiency.
In the context of electric motor housings, which are typically produced in high volumes, this mold design helps manufacturers meet the growing demand for EVs while keeping production costs low.
EV motor housings require high precision to ensure that the motor fits correctly within the housing and functions optimally. Low-pressure die casting provides excellent dimensional accuracy, reducing the need for extensive post-processing. The smooth surface finish produced by the LPDC process also minimizes the need for machining, which further reduces costs and production time.
The four-cavity LPDC mold is especially effective in ensuring that each of the four cast parts produced has identical dimensions, helping to maintain consistency in large production runs.
LPDC is known for producing parts with superior material properties, including strength and density. The low-pressure process results in a part with minimal porosity, which enhances its overall durability. For EV motor housings, which need to withstand high temperatures and mechanical stresses, the superior metallic integrity provided by LPDC is crucial for the motor's longevity.
Additionally, the use of high-grade aluminum alloys in the LPDC process provides a lightweight motor housing without sacrificing strength or durability, a key requirement for electric vehicle components.
The controlled filling of the mold under low pressure ensures that the metal flows efficiently into all cavities without excessive waste. This makes LPDC a more material-efficient process compared to traditional casting methods, where material wastage is often higher.
The reduction in waste also leads to cost savings, which can be passed on to consumers or reinvested into research and development efforts to create even more advanced EV motor housing designs.
With a four-cavity mold system, manufacturers have the flexibility to customize the mold for various part designs. In the case of EV motor housings, different designs may be required depending on the motor specifications and the vehicle model. A four-cavity mold allows manufacturers to accommodate these different designs while still benefiting from the increased efficiency of producing four parts in one cycle.
The process begins with the preparation of the mold, which is typically made from steel or high-strength alloys capable of withstanding the high temperatures involved in casting. In a four-cavity LPDC mold, there are four individual cavities designed to cast identical motor housings simultaneously. The mold is preheated to ensure it is at the correct temperature before the molten metal is introduced.
Molten metal, typically aluminum alloy, is introduced into the mold under low pressure. The controlled pressure helps the molten metal flow into all four cavities, ensuring even distribution and filling of the mold. The low-pressure system allows the molten metal to flow more smoothly into complex mold geometries, such as the intricate designs often required for motor housings.
Once the mold cavities are filled with molten metal, the cooling phase begins. As the metal cools, it solidifies and takes on the shape of the mold. Low-pressure die casting helps ensure uniform cooling, preventing defects such as shrinkage or uneven cooling, which can cause structural weaknesses in the final part.
After the metal has fully cooled and solidified, the mold is opened, and the four motor housings are carefully removed. The parts are inspected for quality, ensuring they meet all dimensional and material specifications.
While the LPDC process provides excellent surface finishes and dimensional accuracy, some post-processing steps may still be required, including trimming the excess metal from the casting and any necessary machining to ensure the parts fit together perfectly. However, the need for extensive post-processing is minimized compared to other casting methods.
The four-cavity low-pressure die casting process is particularly well-suited to the growing demands of the e-mobility sector, where high-performance components are needed to support the next generation of electric vehicles.

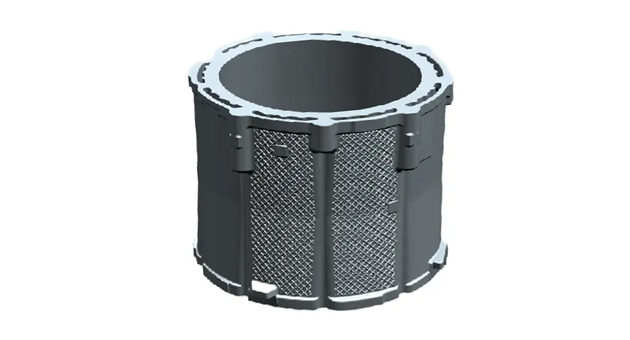

The primary application for four-cavity LPDC molds in e-mobility is the production of EV motor housings. These parts need to meet strict performance criteria, including thermal management, mechanical strength, and weight optimization. The four-cavity LPDC process allows for the production of precise, lightweight, and durable motor housings in high volumes.
Another key application of LPDC in e-mobility is the production of battery enclosures. These enclosures need to protect the battery cells while maintaining an efficient design that supports cooling, safety, and durability. Using LPDC, manufacturers can produce battery enclosures that meet these requirements while reducing weight and maintaining high strength.
In addition to motor housings and battery enclosures, the LPDC process can be used to produce a variety of other structural parts for electric vehicles, including chassis components, bracket supports, and reinforcements. These parts often need to meet strict strength and weight requirements while being produced quickly and cost-effectively.
The rise of electric vehicles has brought about a revolution in manufacturing, with high-performance components like motor housings playing a critical role in the overall efficiency and durability of the vehicle. By utilizing four-cavity low-pressure die casting molds, manufacturers can optimize the production of these essential parts, achieving greater efficiency, precision, and cost-effectiveness.
The benefits of LPDC, including improved material properties, reduced defects, and higher throughput, make it the ideal choice for EV motor housing production. As the demand for electric vehicles continues to grow, the four-cavity LPDC mold will play an increasingly important role in meeting these demands while driving innovation ine-mobility.
