In modern manufacturing, the need for precision, speed, and cost-effectiveness is more crucial than ever, especially when it comes to producing high-quality metal parts. One of the most efficient and widely used techniques for producing such parts is high pressure die casting. This process is essential for creating metal components with complex shapes and intricate details, ensuring both durability and precision.
In this article, we will explore the high pressure die casting process, its benefits, applications, and why it is a preferred choice in industries such as automotive, aerospace, consumer electronics, and more. We will also discuss how companies like Superband Mould use this technology to produce top-quality die casting molds that enhance production efficiency and product quality.
Before we dive into high pressure die casting specifically, it's important to understand the general process of die casting. Die casting is a metal casting process that involves forcing molten metal under high pressure into a mold cavity. The mold, or die, is typically made of steel and is designed to withstand the high pressures and temperatures involved in the process.
This method is widely used to create high-precision, durable parts that require complex shapes, thin walls, and smooth surfaces. Common metals used in die casting include aluminum, zinc, magnesium, and copper alloys.
High pressure die casting, often referred to as HPDC, is a variation of traditional die casting. The key difference lies in the high pressure used to inject molten metal into the mold cavity. In HPDC, the molten metal is injected into the die at pressures of around 10,000 to 20,000 psi (pounds per square inch), compared to the lower pressures used in other casting methods.
This high pressure injection helps the molten metal flow quickly into the intricate mold cavities, resulting in superior surface finishes, dimensional accuracy, and stronger mechanical properties. The result is a final product with a tight tolerance and the ability to withstand high stress and temperature environments.
The process of high pressure die casting can be broken down into several key stages:

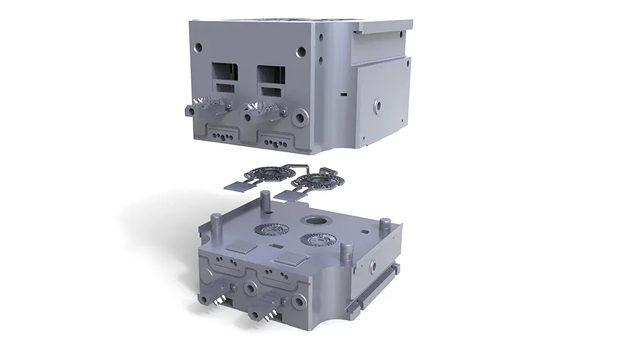

Before any casting occurs, the die (mold) must be prepared. The die is typically made from hardened steel and is designed with a cavity that matches the desired shape of the final part. The die is coated with a lubricant to prevent the molten metal from sticking and to allow for easy removal of the finished part.
The metal to be used in the casting is heated in a furnace until it reaches its molten state. Common metals used for high pressure die casting include aluminum and zinc alloys, which have good flow characteristics and can withstand the high temperatures involved in the process.
Once the metal is molten, it is injected into the die cavity at high pressure. This is the defining characteristic of the high pressure die casting process. The pressure forces the molten metal to fill the die quickly, ensuring that the intricate details and thin walls of the mold are accurately reproduced.
After the molten metal is injected into the mold, it is allowed to cool and solidify. Cooling rates are carefully controlled to ensure that the material sets in the correct shape and that any stresses in the metal are minimized.
Once the metal has cooled and solidified, the die is opened, and the cast part is ejected from the mold. Any remaining flash (extra metal) around the part is removed, and additional finishing processes such as machining, polishing, and coating may be applied to ensure the part meets the desired specifications.
One of the main benefits of high pressure die casting is its ability to produce parts with tight tolerances and excellent dimensional accuracy. Since the molten metal is injected under high pressure, it fills the mold cavity completely, ensuring that every detail of the design is faithfully reproduced. This makes it perfect for complex geometries and parts that need to meet strict quality standards.
High pressure die casting is known for its speed. The rapid injection of molten metal into the mold and the quick solidification of the metal mean that parts can be produced quickly, making it an ideal choice for high-volume production. This high-speed manufacturing reduces lead times, allowing manufacturers to meet tight deadlines.
The high pressure used during the die casting process results in parts with superior mechanical properties. The metal is injected into the mold at such a high pressure that it undergoes rapid cooling, which increases the density of the material, resulting in stronger, more durable parts. This is especially important in industries like automotive and aerospace, where parts need to withstand extreme stress and wear.
Parts produced using high pressure die casting often have an excellent surface finish right out of the mold. The smoothness of the mold cavity combined with the rapid injection of molten metal creates parts with minimal need for additional finishing work. This is especially beneficial in industries that require aesthetic quality in addition to functionality, such as consumer electronics.
While the initial setup for high pressure die casting can be more expensive compared to other methods, it becomes cost-effective for large production runs. The ability to produce parts quickly and efficiently in high volumes means that the cost per part is significantly reduced over time, making it a highly economical option for mass production.
High pressure die casting is used in a wide range of industries to produce parts that require high precision, durability, and strength. Some of the most common applications include:
In the automotive industry, high pressure die casting is used to produce parts such as engine blocks, transmission cases, wheels, and brackets. These parts must be lightweight, durable, and able to withstand high temperatures and stress.
Aerospace components require high-strength alloys that can withstand extreme conditions. High pressure die casting is used to produce parts like engine components, turbocharger housings, and structural elements that meet the stringent demands of the aerospace sector.
In the consumer electronics industry, high pressure die casting is used to create enclosures and casings for devices like smartphones, laptops, and TVs. The process ensures that the parts are lightweight and durable, while also maintaining a smooth finish.
Parts used in industrial machinery, such as valve bodies, pumps, and motor housings, are often produced using high pressure die casting. The strength and durability of the parts make them ideal for demanding industrial environments.
Medical devices such as surgical instruments and equipment housings also benefit from high pressure die casting, as it allows for the creation of precise and durable components that meet health and safety standards.
High pressure die casting is a highly efficient and reliable method for producing precision-engineered metal components. With its ability to create complex shapes with tight tolerances and superior mechanical properties, it is the go-to process for industries requiring high-quality, durable, and cost-effective parts.
By partnering with companies like Superband Mould, manufacturers can access the latest in die casting technology, including vacuum die casting, oxygen filling die casting, and ultra-low speed die casting molds. These advanced solutions enable companies to optimize production processes and improve product quality, enhancing their overall competitiveness in the market.
If you are interested in high pressure die casting molds or want to discuss your specific needs, be sure to reach out to Superband Mould through their contact page or visit their die casting molds page for more information.
