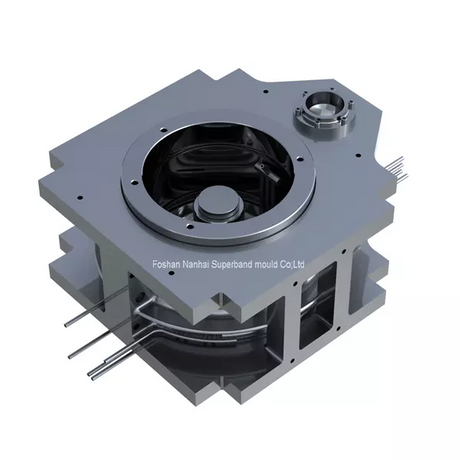

In the world of high-pressure die casting, all stable molding originates from a core mechanical principle: the clamping force must be greater than the mold opening force. This is the physical law that ensures safety, quality, and efficiency. As a professional aluminum die-casting mold manufacturer, Foshan Nanhai Superband Mold Co., Ltd.emphasizes that an excellent custom mold design must precisely match the clamping force of the die-casting machine. This article delves into the relationship between clamping force and mold opening force, revealing how it affects mold lifespan and casting precision, to help you make economical decisions.
Mold Opening Force: The internal pressure generated when molten metal fills the mold cavity during high-pressure injection, attempting to push the mold halves apart. This force is the basis for selecting the clamping force.
Clamping Force:The closing force applied by the die-casting machine to resist the mold opening force and prevent metal splashing (flash).
Simple Equation: Clamping Force > Mold Opening Force. However, the mold opening force is a dynamic variable that requires scientific estimation through CAE simulation. Actual values should be based on CAE simulation + trial molding validation to avoid theoretical deviations.
The mold opening force is influenced by multiple factors, which we calculate collaboratively during custom mold design to ensure a perfect match.
| Influencing Factor | How It Affects Mold Opening Force | Superband Collaborative Design Strategy |
| Projected Area | The most dominant factor, including the total projected area of the casting itself + the runner system + overflow wells. Larger area equals greater mold opening force. | Optimize cavity layout, multi-cavity arrangement, or use angled parting lines during the initial design phase to reduce the total projected area and lower clamping force requirements. |
| Filling Pressure | Higher pressure leads to greater mold opening force. Typical range for aluminum alloy HPDC is 30–100 MPa. | Use CAE flow analysis to optimize the runner and gating system, achieving molding with the minimum necessary pressure. |
| Casting Material | Alloy density and fluidity differ (e.g., aluminum vs. magnesium), affecting pressure transmission. | Provide conservative margin recommendations for materials like magnesium alloys and adjust mold materials and processes accordingly. |
| Gating & Overflow System | Inefficient design leads to localized high pressure. | Use CAE simulation to balance pressure distribution and avoid artificially high requirements. |
Selecting clamping force requires balancing trade-offs: excessive force wastes energy and accelerates mold wear; insufficient force risks accidents.
Core Formula: Clamping Force ≥ Mold Opening Force = Total Projected Area × Filling Pressure × Safety Factor (1.2–1.5, 1.2 for simple parts, 1.5 for high-difficulty parts).
Example: An automotive bracket casting with a total projected area of 500 cm², filling pressure of 80 MPa (800 kg/cm²), and a safety factor of 1.3.
Mold Opening Force = 500 × 800 × 1.3 = 520,000 kg ≈ 520 tons.
Recommended Clamping Force: At least 520 tons, with a 20% margin (624 tons) recommended to ensure long-term stability.
Small Precision Parts:Focus on precision guidance for small to medium-sized machines.
Large Structural Parts: For large equipment, we reinforce mold rigidity and cooling.
Integrated (Giga) Castings: Require 5000T+ machines; we provide complete giant mold solutions.
Incorporate a 15%–25% design margin paired with high-rigidity mold construction. This extends mold life and reduces maintenance frequency
Every custom mold provided by Superband comes with a CAE-simulated clamping force evaluation and equipment matching recommendations, ensuring stable production from the foundation of mechanical principles.
