When it comes to producing aluminum components for automotive, aerospace, energy, and industrial applications, the casting method you choose can significantly impact product quality, performance, and cost-efficiency. Among the most widely used techniques are low pressure die casting and sand casting. Both methods have their benefits, but with the global demand for more complex, lightweight, and high-precision parts, industries are increasingly comparing the two to determine the better option.
So, which one truly delivers better results—low pressure die casting or sand casting? In this article, we’ll explore this question in depth, focusing on how LPDC mold technology stacks up against traditional sand casting. Using real-world applications, product data, and process comparisons, we’ll help you understand which casting process better meets the requirements of modern manufacturing.
Before diving into comparisons, it’s important to understand how each process works and what makes them unique.
Low pressure die casting, often referred to as LPDC, is a controlled casting process in which molten aluminum is pushed into a mold cavity using low air pressure (typically between 0.3 and 1.5 bar). This process results in smooth metal flow, reduced turbulence, and minimal porosity. The molds used in this process, known as LPDC molds, are made from high-strength die steel and designed for repeated, high-precision use.
The low pressure die casting process is especially suitable for creating thin-walled, complex components such as automotive wheels, electric vehicle motor housings, and structural subframes. The process is often supported by a low pressure die casting machine, which controls temperature, pressure, and cycle time for consistent results.
Sand casting is one of the oldest metal casting techniques. It uses a sand-based mold to shape molten metal. The process is relatively simple and cost-effective, making it suitable for low-volume production or large, heavy parts where dimensional accuracy is less critical.
However, sand casting comes with its limitations. The surface finish is rougher, dimensional tolerances are wider, and porosity is more common due to uncontrolled metal flow and gas entrapment. While it’s a great solution for basic or oversized components, it often falls short in modern applications that demand high-performance standards.
To better understand the strengths and weaknesses of each process, let’s break down the comparison across key performance metrics:
| Criteria | Low Pressure Die Casting (LPDC) | Sand Casting |
|---|---|---|
| Mold Type | Reusable LPDC mold with cooling systems | Disposable sand molds |
| Dimensional Accuracy | High (tight tolerances) | Moderate to low |
| Surface Finish | Smooth, minimal post-processing needed | Rough, requires significant finishing |
| Production Volume Suitability | Medium to high | Low to medium |
| Complexity of Part Geometry | Excellent for complex, thin-walled structures | Limited by mold stability |
| Porosity | Low, especially with low pressure vacuum mold integration | High, due to uncontrolled gas movement |
| Tooling Cost | Higher initial cost, lower per unit in mass production | Low initial cost, high per unit in ongoing production |
| Cycle Time | Shorter, automated | Longer, manual |
| Ideal Applications | Automotive wheels, EV parts, aerospace components | Large industrial parts, prototypes |
From this data, it’s clear that low pressure casting is better suited for high-value markets that require superior mechanical properties and aesthetic finish. While sand casting has its place, especially for oversized components or short-run projects, it’s increasingly being replaced by LPDC in industries where high performance casting is non-negotiable.
At the core of low pressure aluminum casting is the mold. A well-designed LPDC mold ensures uniform metal flow, optimizes cooling, and significantly reduces the chances of internal defects like shrinkage or porosity. Superband, a leading mold manufacturer based in Foshan, China, specializes in designing and producing high-precision LPDC molds for global automotive and industrial customers.
Their molds are integrated into advanced low pressure die casting machines, offering total control over temperature, pressure, and solidification timing. This level of control is vital for producing parts with consistent quality, especially for mission-critical applications like electric vehicle components.
Some of Superband’s most popular low pressure die casting products include:

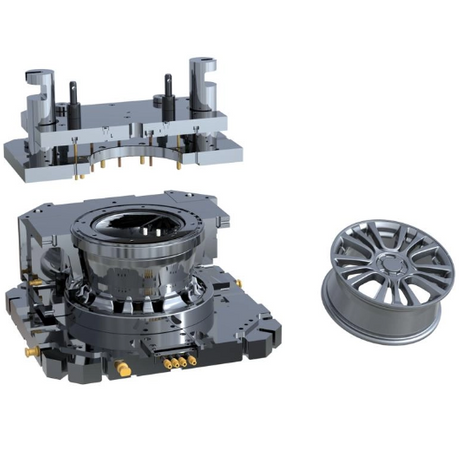

Low Pressure Casting Aluminum Auto Wheel Mould: Designed for precision, strength, and durability, this mold supports the production of alloy wheels that meet both performance and aesthetic standards.
LPDC Automotive Aluminum Subframe Mold: This mold is engineered for casting structural chassis components with minimal wall thickness variation and high strength-to-weight ratio.
Electric Motor Housing Mold: Used for EV motors, this mold enables the casting of intricate geometries with integrated cooling channels, essential for thermal management in electric drivetrains.
Each of these molds is developed with simulation tools like mold flow analysis and supported by Superband’s in-house testing capabilities using 17 sets of 350T–3050T casting machines.
As industries prioritize sustainability, weight reduction, and part complexity, low pressure aluminum casting is becoming the go-to method for forward-thinking manufacturers. Unlike sand casting, which struggles with repeatability and surface quality, LPDC delivers consistent results across thousands of cycles.
Other advantages include:
Better Material Utilization: LPDC minimizes scrap and allows for thinner wall sections without compromising strength.
Reduced Defect Rates: Integration of low pressure vacuum mold systems ensures that gas pockets and porosity are virtually eliminated.
Faster Production Cycles: LPDC molds are compatible with automated casting and robotic handling, reducing labor costs and human error.
Scalability: Once the mold is validated, scaling production is straightforward and cost-effective.
In high-growth markets like electric mobility, LPDC has become a standard for producing battery housings, motor enclosures, and lightweight frames—components that sand casting simply cannot produce to specification.
One of the key reasons why LPDC outperforms sand casting in advanced manufacturing is the level of design validation it offers. Using tools like the low pressure die casting diagram, engineers can simulate metal flow, solidification rates, and stress points before actual production begins. This dramatically reduces the risk of defects, shortens development cycles, and speeds up time-to-market.
Superband invests over 10 million yuan per year in R&D to enhance their mold design capabilities. Their engineering centers are equipped with the latest software for CAE analysis, mold stress simulation, and high-temperature scanning—all aimed at maximizing the performance of each LPDC mold.
Whether you’re manufacturing automotive wheels, EV powertrain components, or industrial aluminum housings, the decision between LPDC and sand casting depends on your goals:
Choose low pressure die casting if:
You need tight tolerances and excellent surface finish
Your part includes thin walls or complex geometries
You’re targeting medium to high production volumes
You require structural integrity and load-bearing capability
Your market demands sustainable, low-waste manufacturing
Choose sand casting if:
You’re producing large, simple parts in small volumes
Dimensional accuracy and surface quality are not critical
You need a quick prototype or one-off component
For most modern applications, especially those involving aluminum alloys, LPDC is the clear winner in terms of quality, efficiency, and return on investment.
A1: An LPDC mold is a reusable steel mold designed for low pressure die casting. It offers high dimensional accuracy, smooth surface finish, and long service life. A sand mold, by contrast, is made from sand and used only once, offering lower accuracy and higher porosity.
A2: The process involves injecting molten aluminum into a mold using low air pressure. The metal fills the mold cavity smoothly, reducing turbulence and defects. The mold is then cooled, and the part is solidified and ejected. This controlled process ensures consistent quality, especially when using a well-designed LPDC mold.
A3: A low pressure vacuum mold includes a vacuum system that removes air from the mold cavity before the molten metal is introduced. This eliminates gas entrapment, which can lead to porosity, and enhances the mechanical properties and surface quality of the finished casting.
A4: Low pressure die casting is ideal for products like aluminum wheels, EV motor housings, structural subframes, and other components that require strength, precision, and excellent finish. These are commonly referred to as low pressure die casting products and are widely used in the automotive and aerospace industries.
A5: A low pressure die casting diagram is a visual representation of the casting process, including mold design, metal flow paths, and cooling channels. It helps engineers plan and optimize the casting process before production, reducing the risk of defects and improving cycle efficiency.
In the debate between low pressure die casting and sand casting, the answer is increasingly clear. For manufacturers aiming to meet the demands of modern engineering—lightweight materials, complex designs, sustainability, and high performance—LPDC mold technology offers unmatched advantages.
Superband’s expertise in mold design, their commitment to R&D, and their ability to offer complete in-house casting solutions make them a trusted partner for global OEMs. Whether you’re in the automotive, energy, or industrial sector, investing in low pressure die casting is a strategic move toward better quality, lower costs, and future-ready manufacturing.With the right mold and the right process, high-performance aluminum casting is no longer just a goal—it’s an achievable standard.
