The go kart steering wheel hub bolt pattern shows how the steering wheel connects to the hub. You might see patterns like the 3-bolt 58mm or the 6-bolt 70mm and 74mm. These patterns follow either metric bolt pattern or American standards. The pattern changes how the steering works, how strong it is, and if it fits right. You need the right pattern so the wheel hub, steering wheel, and wheels work together. The correct hub keeps steering safe, strong, and matches all steering parts. High-performance racing kart parts, like those from Superband Mould, use the best racing kart components and advanced die casting mold and alloy wheel mould methods. Leading Italian kart component makers trust these hubs. They give a perfect fit, strength, and work with every kart steering wheel.
Always make sure the bolt pattern and hub size match. This helps the steering wheel fit safely and tightly. Use exact tools like digital calipers to check the bolt circle diameter. Do this before you buy or put on new parts. Pick strong hubs made from tough materials like aluminum alloys. This makes them last longer and work better. Check your steering system often for wear, loose bolts, or strange sounds. This keeps you safe. Use adapters and parts from trusted brands. This helps your steering system stay strong and reliable.
When you look at a go kart steering wheel, you see holes where bolts attach the wheel to the hub. The bolt pattern is the arrangement of these holes. Technically, the bolt pattern is called the bolt circle diameter. This means the diameter of the circle that passes through the center of all the bolt holes on the steering wheel or hub. You use this measurement to check if your wheel and hub will fit together. The bolt pattern is important for the strength of the connection. If you choose the wrong pattern, the steering wheel will not fit the hub, and you risk losing control of your kart.
You find the bolt circle diameter by measuring from the center of one bolt hole to the center of the hole directly across from it. This measurement helps you match the steering wheel to the hub. For example, many go kart steering wheel hubs use a 3-bolt pattern with a 1-9/16 inch bolt circle diameter. This standard is common in kart racing and ensures the steering wheel fits tightly to the hub. When you use the correct pattern, you get the best strength and safety for your steering system.
Go kart steering wheel hubs come in several common patterns. Each pattern uses a different bolt circle diameter and stud size. You need to know these details to make sure your steering wheel and hub have full compatibility. Here is a table showing the most widely used patterns:
Bolt Pattern Type | Bolt Circle Diameter | Stud Size | Description |
|---|---|---|---|
American (US) | 2.5 inches | 1/4" or 5/16" | 3 bolts evenly spaced on a 2.5" diameter circle; spindles 5/8" diameter |
Metric | 58 mm (approx. 2.28") | 8 mm | 3 bolts evenly spaced on a 58 mm diameter circle; spindles 17 mm or 25 mm diameter |
CRG Front | 67 mm (approx. 2.64") | 8 mm | 3 bolts evenly spaced on a 67 mm diameter circle; slightly different from standard metric pattern |
You see these patterns on most kart steering wheel hubs. The American pattern uses a 2.5-inch bolt circle diameter. The metric pattern uses a 58 mm bolt circle diameter. The CRG front pattern uses a 67 mm bolt circle diameter. Each pattern gives you a different fit and strength. You must check the pattern before you buy a new wheel or hub. This step ensures the steering wheel fits the hub and gives you the right strength for racing or recreational karting.
Tip: Always double-check the bolt circle diameter and stud size before installing a new steering wheel or hub. This step prevents mistakes and keeps your steering system strong.
Choosing the correct bolt pattern for your go kart steering wheel hub is critical for safety and performance. When you match the steering wheel and hub with the right pattern, you get a secure fit. This fit keeps the steering wheel from coming loose during high-speed driving. You also get better strength in the steering system, which helps you control the kart.
If you use the wrong pattern, the steering wheel may not align with the hub. This mistake can cause the wheel to become loose. You risk losing control of the kart, which can lead to accidents. Proper compatibility between the steering wheel, hub, and wheel hub ensures the steering system works as designed. You get better handling, more precise steering, and improved strength.
You should inspect your steering wheel and hub often. Look for signs of wear, such as loose bolts, unusual noises, or vibrations. These signs mean you need to check the bolt pattern and the strength of the connection. Regular maintenance keeps your steering system safe and strong.
The correct bolt pattern ensures the steering wheel fits tightly to the hub, preventing failure.
Proper compatibility improves handling and control.
Incorrect patterns or poor installation can cause the steering wheel to loosen, leading to safety risks.
Regular inspection and maintenance help you avoid wear-related failures.
Watch for excessive play, noises, or vibrations in the steering wheel, as these can signal problems.
When you choose high-quality products from trusted manufacturers like Superband Mould, you get precision die casting mold and alloy wheel mould solutions. These products give you the best fit, strength, and compatibility for your go kart steering wheel hub. You protect your kart, improve performance, and keep your steering system reliable.
You need the right tools to measure your wheel hub and steering parts. Start with a digital caliper or a precise ruler. These tools help you find the bolt circle diameter and hub size. You also need a marker to highlight the bolt holes on your wheel. A notepad helps you record each measurement. For best results, use a metric and an American ruler. This way, you can check both standards for your go kart steering wheel and hub.
Essential Tools:
Digital caliper or ruler (metric and American)
Marker or chalk
Notepad
Clean cloth for wiping the wheel hub
Tip: Clean the wheel hub before you start. Dirt can change your measurements.
Remove the wheel from the hub. Place the wheel flat on a table.
Count the number of bolt holes on the steering wheel. Most go kart steering wheels have three or six holes.
Use your caliper or ruler to measure from the center of one bolt hole to the center of the hole directly across. This gives you the bolt circle diameter.
Write down the bolt circle diameter in both millimeters and inches. This helps you compare metric and American standards.
Measure the hub diameter. Place the caliper across the center of the hub opening.
Record the wheel size and tire diameter if you plan to change the wheel or upgrade your kart.
Double-check all measurements before you start the installation.
Note: Always match the bolt circle diameter and hub size to your steering wheel and wheel hub for a safe installation.
You want your steering to feel smooth and safe. Use these tips to get the best results:
Always measure twice before installation.
Avoid guessing the bolt circle diameter. Use a caliper for precision.
Check the wheel hub for wear or damage before you install a new wheel.
Compare your measurements with the manufacturer's specifications. Superband Mould provides detailed specs for die casting mold and alloy wheel mould products.
If you see any mismatch, do not force the installation. Find the correct parts for your kart.
Alert: Incorrect measurements can cause steering problems or unsafe installation. Take your time and use the right tools.
When you look at steering wheel hubs for karts, you see a few common sizes. Most go kart steering wheel hubs use a 3-bolt or 6-bolt pattern. The 3-bolt pattern is usually 58mm or 1-9/16 inch across. The 6-bolt pattern is often 70mm or 74mm wide. Racing karts sometimes use bigger hubs, about 6 to 7 inches. Recreational karts usually have 5-inch hubs. You need to pick the right hub size for your steering system. This helps your kart work well and fit right. Always check the bolt circle diameter and how many bolts there are before you buy a new wheel or hub.

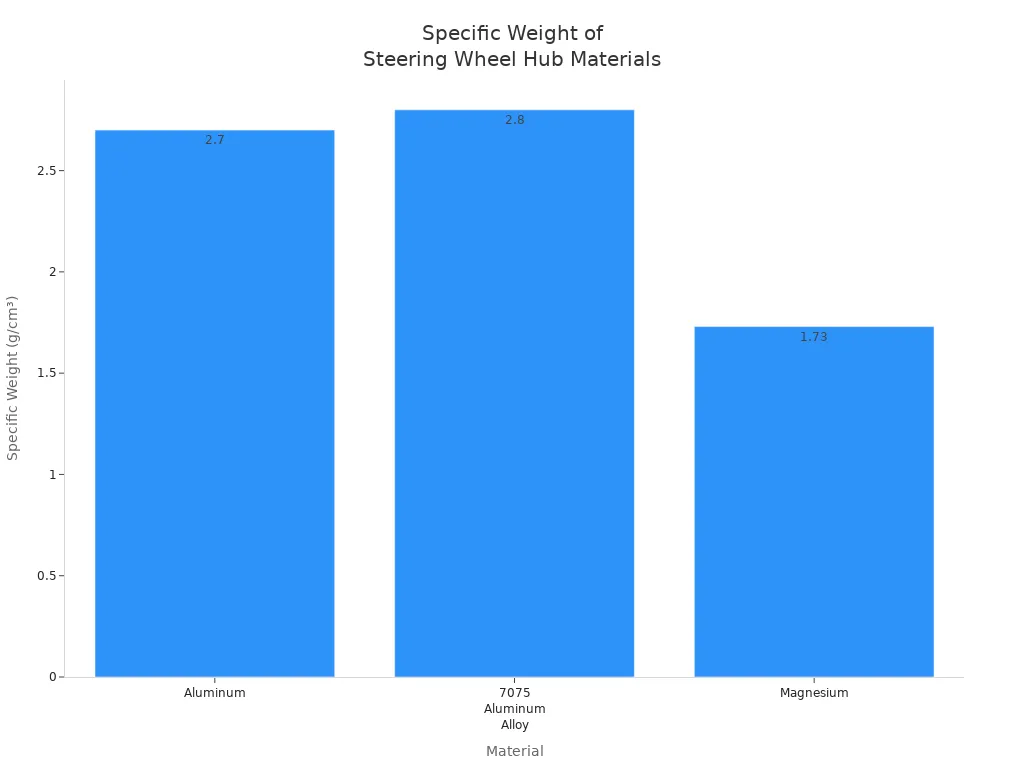

The material and how your steering wheel hub is made are very important. They help keep your kart safe and make it last longer. Makers use strong materials like aluminum, 7075 aluminum alloy, and magnesium. These materials give your hub the strength it needs for racing or daily driving. Look at the table below to see how these materials compare:
Material | Specific Weight (g/cm³) | Thermal Conductivity | Performance and Longevity Implications |
|---|---|---|---|
Aluminum | 2.7 | Lower than magnesium | Durable, helps tires reach optimal temperature faster in cooler conditions. |
7075 Aluminum Alloy | 2.8 | Lower than magnesium | Higher strength, great for high-stress racing environments. |
Magnesium | 1.73 | Higher (better heat dissipation) | Lighter, better heat management, improves tire performance and longevity in high temperatures. |

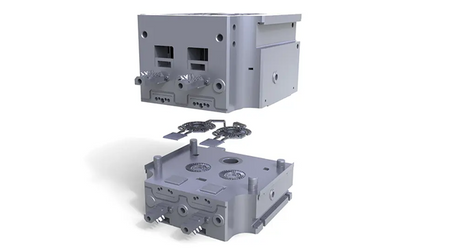

Good manufacturing methods, like CNC machining and die casting, make sure each hub fits well and is strong. Superband Mould uses advanced die casting mold and alloy wheel mould technology. They follow ISO9001 standards. This makes the wheel hub reliable for both racing and fun driving.
If you use bad materials or poor manufacturing, your hub can wear out fast or even break. Always buy real products from trusted places like Superband Mould to keep your steering safe.
You always need to check if your steering wheel, hub, and go kart wheels fit together. Different bolt patterns, hub types, and steering shaft sizes can make things not fit right. For example, some hubs use Momo 6x M5 bolts on a 70mm or 74mm circle. Others use a 3-bolt 58mm pattern. Racing hubs might not fit on recreational karts because of size or how they adjust. Tight machining tolerances stop extra movement between the coupler and hub. This gives you better control when steering. Always match your wheel hub to your kart’s axle and steering shaft for the best fit and performance.
Fake or low-quality hubs can make your steering unsafe. Buy from trusted sellers and check your wheel hub often to stay safe.
You must have the right bolt pattern and hub fit for your go kart. The bolt pattern shows how the wheel connects to the hub. If the steering wheel, hub, and wheel all match, you get a good fit. This makes the steering work well and keeps you safe. Using the right hub stops shaking and keeps the wheel in the middle. It also helps the lug nuts hold the wheel tight. When you install the steering wheel and hub the right way, they work together well and stay strong. Always check the bolt pattern, center bore, and lug nut size before you put them on. Doing this makes sure everything fits and helps keep you safe.
The bolt pattern holds the wheel on the kart.
The center bore keeps the wheel in the right place.
You need the right lug nut size and thread pitch for safety.
A good fit helps you steer better and control the kart.
Sometimes, you need adapters to use different wheels or hubs. Adapters help things fit, but you must pick the right one for your kart. The table below lists common adapter types and how they affect fit and safety:
Adapter Type | Description & Fitment Impact | Safety & Performance Impact |
|---|---|---|
Basic | Works with normal rims for light tires and small jobs | Good for home use; basic safety |
Offset | Moves the wheel for better balance and handling | Helps with turning and performance |
Converting | Lets you use different rim sizes on one kart | Flexible, but can cause problems if not careful |
Billet Aluminum | Strong, light, made for racing and heavy loads | Very strong, resists rust, best for safety |
Always use strong adapters made from good materials like aluminum alloys. Superband Mould uses special die casting mold and alloy wheel mould methods for extra strength. Always check that the adapter fits right and is installed correctly. If the adapter is weak or too thin, it can bend or break and make things unsafe.
Check your steering system often to keep it safe. Look at the steering wheel, hub, and where everything connects before each ride. Watch for cracks, worn spots, or loose parts on the hub and wheel. After every ride, clean and check the steering parts. Tighten all nuts and bolts so nothing comes loose. If you feel shaking or see the steering move oddly, stop and check it right away. Change any broken parts as soon as you find them. Follow the maker’s guide for when to do maintenance. Superband Mould says to check all die casting mold and alloy wheel mould parts often to keep your kart safe and working well.
Tip: Checking your kart often and installing parts the right way stops accidents and keeps your steering strong.
Choosing the right steering wheel hub bolt pattern and knowing your wheel hub specifications keeps your kart safe and easy to control. You should always check the steering wheel, hub, and steering system for the correct fit. High-quality hubs made with strong materials, like those from Superband Mould, last longer and help your steering stay smooth.
Durable steering wheel hubs improve handling and reduce lap times.
Protective coatings on the hub prevent rust and extend the life of your wheel.
A well-matched steering system gives you better control and safety.
You should inspect your steering hub often and follow expert advice for maintenance. Using trusted die casting mold and alloy wheel mould products helps you avoid problems and keeps your kart running strong.
You usually find a 3-bolt 58mm pattern on most go karts. This pattern helps your steering feel smooth and secure. Always check your hub and steering wheel before you buy new parts.
You need to match the bolt pattern and hub size. Measure the bolt circle on your steering wheel and compare it to your hub. If they match, your steering will work well and stay safe.
Yes, you can use adapters if your steering wheel and hub have different patterns. Choose high-quality adapters made from strong materials like those used in Superband die casting mold products. This keeps your steering system safe.
The hub material affects how strong and durable your steering system is. Aluminum alloy and alloy wheel mould parts from Superband give you better performance. Good materials help your steering last longer and keep you safe on the track.
