In the manufacturing world, particularly in industries such as automotive parts, home appliances, and electronics, molds are crucial tools that enable mass production of precision components. The high pressure die casting mold (HPDC Mold) stands out as one of the most efficient methods to produce complex, high-quality metal parts rapidly. But behind every mold lies a detailed and carefully controlled process known as die making.
This article dives deep into the five essential steps of the die making process, focusing on HPDC Mold technology and its related types like oxygen-filled die casting mold, ultra-low speed die casting mold, and cold chamber die casting mold. We will explore how these steps shape the mold's quality and durability and connect them to real-world applications, including automobile engine mounts/brackets, aluminum LED lights, and various home appliances.
By understanding these steps in depth, manufacturers and product designers can make informed decisions, optimizing mold costs, improving product quality, and shortening time-to-market. This guide also considers recent industry trends and the increasing demands for precision and sustainability.

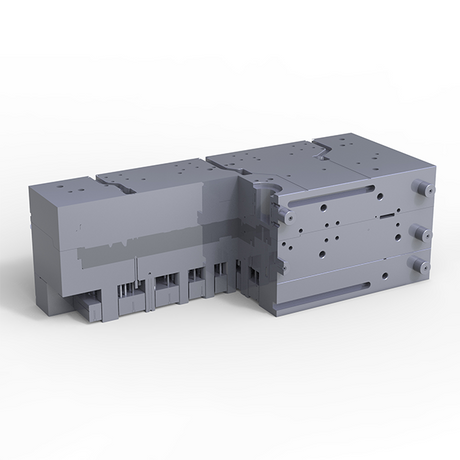

The die making process starts with design and engineering, the foundation that determines the mold's success in production. Designing a high pressure die casting mold involves creating a digital model using advanced CAD software, considering not only the shape of the part but also the mold’s ability to withstand intense pressure and heat.
Metal flow simulation predicts how molten metal will fill the mold to avoid defects such as air pockets or cold shuts.
Cooling channel design ensures uniform cooling, reducing cycle times and preventing warping.
Parting line placement is critical for ease of part removal and minimizing flash (excess material).
Ventilation and ejector systems allow gases to escape and parts to be ejected smoothly after casting.
Special molds, like the oxygen-filled die casting mold, incorporate features to reduce oxidation by controlling the atmosphere inside the mold cavity, leading to superior surface quality and mechanical properties. This is particularly important for critical automotive parts, where durability and appearance are crucial.
The design phase also includes deciding the type of mold best suited for the material and application. For example, a cold chamber die casting mold is preferred when working with metals such as aluminum, which have a high melting point, because it separates the molten metal injection area from the heated die, preventing premature solidification.
The upfront investment in design ensures fewer defects during production, reducing waste and improving overall efficiency. Iterations at this stage, powered by simulation tools, help avoid costly mistakes that can arise later during machining or production.
After finalizing the design, the next critical step is selecting materials that will withstand the harsh conditions of high pressure die casting. HPDC Mold components are subjected to extreme temperatures, pressure, and mechanical stress.
Tool steels: High hardness and toughness steels such as H13, S7, or P20 are common. They resist abrasion and thermal fatigue.
Stainless steels: Used for molds requiring corrosion resistance.
Copper alloys: Sometimes used in inserts or cores for better heat conduction.
Choosing the right material affects not only the mold’s lifespan but also the casting quality. For example, a mold used for producing automobile engine mounts/brackets requires materials that maintain dimensional stability after thousands of cycles.
Oxygen-filled die casting molds often use steels with enhanced surface coatings or treatments to withstand reactive environments.
Ultra-low speed die casting molds demand materials with excellent wear resistance since slower injection may cause localized thermal stresses.
Cold chamber die casting molds require materials that can handle cyclic heating and cooling with minimal deformation.
Manufacturers like those available at Superband Mold emphasize sourcing premium materials, ensuring the molds meet international standards for durability and precision.
Machining and fabrication convert the design and materials into a physical mold. This stage is highly technical, involving precise and multi-axis CNC machining to achieve complex shapes and tight tolerances.
CNC milling and turning create the basic mold cavities and external features.
Electrical discharge machining (EDM) is used for intricate details, sharp corners, and hard-to-machine areas.
Grinding and polishing provide surface finishes critical to reducing casting defects.
Heat treatment improves mold strength and wear resistance.
The machining precision affects the final cast parts. For instance, molds used to produce aluminum LED lights demand excellent surface finish for aesthetic reasons and tight dimensional control for assembly fit.
Advanced molds like oxygen-filled die casting molds and ultra-low speed die casting molds often require additional machining steps to incorporate specialized cooling channels or inserts that improve mold life and casting quality.

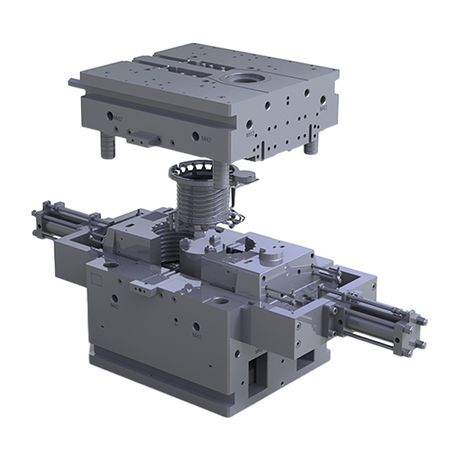

After machining, the mold is assembled by fitting components such as cores, inserts, ejector pins, and cooling systems. Precise assembly ensures that all parts align perfectly, which is essential for producing defect-free castings.
Trial runs, also called tryouts, test the mold by running it through actual casting cycles. These sample parts are carefully examined for:
Dimensional accuracy: Checking if parts meet design specifications.
Surface quality: Inspecting for roughness, porosity, or oxidation.
Mechanical properties: Ensuring strength and durability.
For complex molds such as cold chamber die casting molds or HPDC Molds producing critical automotive parts, several trial adjustments might be necessary. Adjustments can include:
Modifying cooling channels for uniform solidification.
Tweaking venting to reduce air entrapment.
Refining parting lines to improve part ejection.
Trial and error at this stage help manufacturers avoid costly errors during mass production, especially in sectors where part failure is not an option.

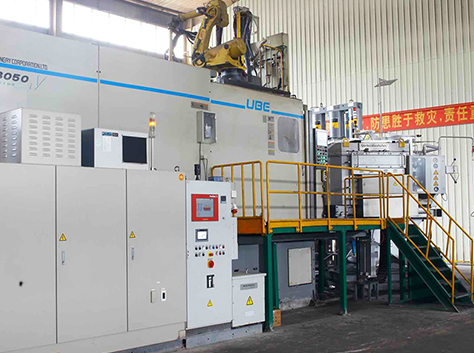

Once trials are successful, the mold enters full-scale production. The mold is mounted on a high pressure die casting machine where molten metal is injected at high velocity and pressure.
Cycle time optimization balances speed with part quality.
Cooling efficiency ensures rapid solidification without warping.
Part ejection systems prevent damage to delicate parts during removal.
Regular maintenance is vital for prolonging mold life, especially for molds with complex features like oxygen-filled die casting molds or those used in ultra-low speed die casting. Maintenance activities include:
Cleaning to remove residues.
Inspecting for wear or cracks.
Lubricating moving components.
Re-machining or replacing worn parts.
Proper maintenance ensures the mold can produce consistent parts for thousands or even millions of cycles, covering applications from automobile engine mounts/brackets to home appliances.
Understanding different mold types helps select the right process for your products:
Mold Type | Typical Use | Key Feature | Advantages | Common Applications |
---|---|---|---|---|
High Pressure Die Casting Mold | Automotive, electronics | Fast cycle, high precision | High volume, durable molds | Engine mounts, brackets, appliance parts |
Oxygen-Filled Die Casting Mold | High-end automotive parts | Reduces oxidation, superior finish | Enhanced surface quality | Specialized automotive and aerospace parts |
Ultra-Low Speed Die Casting Mold | Fragile, complex shapes | Slower metal injection | Less defects, better mechanical properties | LED lighting, delicate electronics |
Cold Chamber Die Casting Mold | Aluminum and zinc alloys | Separate molten metal chamber | Handles high melting point metals | Heavy engine parts, structural brackets |
Choosing the correct mold type impacts manufacturing efficiency, product quality, and long-term costs.
The die making and casting industries are evolving rapidly, driven by innovations in technology and market demands.
Virtual replicas of molds and processes allow real-time monitoring, predicting potential issues before physical trials. This accelerates design iterations and improves quality assurance.
Sustainability drives the selection of recyclable materials and waste reduction techniques in both mold manufacturing and casting operations.
Increasing demand for fuel efficiency has led to advanced HPDC Mold designs that support thinner walls, complex cooling, and optimized casting parameters to produce lightweight yet strong automotive parts.
Integration of robotics and AI-driven systems in mold making improves precision and consistency while reducing lead times.
A1: The steps include design and engineering, material selection and procurement, machining and fabrication, assembly and trial runs, and production with ongoing maintenance.
A2: Oxygen-filled molds minimize oxidation inside the mold cavity during casting, resulting in higher surface quality and fewer defects, but require more complex design and manufacturing.
A3: Yes, they are ideal for fragile or complex components where slower metal injection speeds prevent casting defects, commonly used in automotive and lighting industries.
A4: Because cold chamber molds separate the molten metal chamber from the injection mechanism, they handle high melting point metals like aluminum efficiently and reduce premature solidification.
A5: Trusted suppliers like Superband Mold offer a wide range of molds suited for automotive, home appliance, and lighting applications.
Mastering the five steps of the die making process is essential for producing high-quality, durable high pressure die casting molds that meet today’s manufacturing demands. From the critical design phase through to maintenance during production, each step influences the efficiency, cost, and quality of your final product.
As industries like automotive, home appliances, and LED lighting continue to push boundaries, the choice and quality of molds become even more important. Staying updated on trends like oxygen-filled molding, ultra-low speed processes, and cold chamber technology ensures your products stay competitive.For businesses seeking top-tier molds with proven performance, exploring offerings from Superband Mold can provide tailored solutions backed by innovation and quality.
