Alloy wheels are a crucial component in modern automotive design, providing significant improvements in strength, weight, and aesthetics when compared to traditional steel wheels. These wheels are made from aluminum alloys and manufactured using a variety of molding techniques. The method chosen for alloy wheel manufacturing plays a pivotal role in determining the strength, weight, cost, and durability of the finished product. The four most commonly used techniques in alloy wheel mold manufacturing are low-pressure casting, flow forming, gravity casting, and forging.

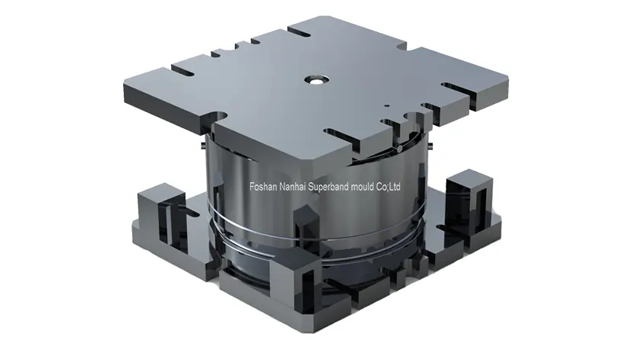

An alloy wheel mold is the key to producing a high-quality wheel. Precision molds are required to achieve the desired dimensions and strength of the wheel. Without a reliable mold, even the best aluminum alloy cannot reach its full potential.
The quality of the mold directly impacts several important factors:
Strength: Ensures the wheel can handle the stresses it will encounter on the road.
Weight: Alloy wheels are popular because they are lighter than traditional steel wheels, which can improve performance and fuel efficiency.
Surface Finish: A high-quality mold ensures a smooth, aesthetically pleasing surface that requires minimal post-processing.
Production Efficiency: Efficient molds result in faster production times and fewer defects.
With these factors in mind, let's take a closer look at the four most commonly used alloy wheel molding processes.
Low-pressure casting is a manufacturing process where molten aluminum is poured into a mold with controlled air pressure (ranging from 0.1 to 0.5 MPa). The low-pressure system pushes the molten aluminum upward, filling the mold completely. This ensures that the aluminum flows evenly throughout the cavity, minimizing defects such as air bubbles and porosity.
By controlling the air pressure, this process allows for more uniform metal flow, which results in a denser and stronger final product. The aluminum’s grain structure is more compact compared to gravity casting, resulting in greater strength and durability.
Better metal density: The controlled pressure reduces porosity, making the wheel more durable and resistant to cracks and other defects.
Cost-effective: This method is ideal for mid-range and high-volume production. It offers a good balance between cost and performance.
Precision: The controlled mold filling process provides precise dimensions and a smooth surface finish, which reduces the need for extensive post-processing.
Widely used in OEM applications: Low-pressure casting is a popular choice for OEM manufacturers (Original Equipment Manufacturer) due to its balance of cost and strength.
Passenger vehicles: Low-pressure casting is commonly used to produce alloy wheels for everyday vehicles due to its combination of strength and affordability.
Mid-range performance cars: This process is also well-suited for performance cars that need a balance of strength, lightness, and cost.
Aftermarket alloy wheels: Aftermarket companies often use low-pressure casting to produce wheels that offer good quality at a competitive price.
Low-pressure casting is popular because it offers an excellent balance of cost, strength, and efficiency.
Flow forming, also known as rotary forging, starts with a pre-cast aluminum wheel blank. The wheel blank is heated to a specific temperature and then spun at high speeds while rollers apply high-pressure forces to stretch and compress the material. This action reduces the thickness of the wheel without sacrificing strength. The spinning process realigns the aluminum's grain structure, enhancing its overall strength and resistance to impacts.
Flow forming is typically used when the goal is to produce lightweight, high-performance wheels with better durability compared to standard cast wheels.
High strength-to-weight ratio: Wheels made with flow forming are lighter than standard cast wheels but are just as strong as fully forged wheels, making them ideal for high-performance applications.
Impact resistance: The process increases the wheel’s ability to withstand impacts and stresses, reducing the likelihood of cracks or dents.
Improved performance: Lighter wheels can improve handling, acceleration, and braking, making them ideal for performance vehicles.
Cost-effective alternative to full forging: While flow-formed wheels offer similar performance benefits to forged wheels, they are more affordable, making them accessible to a wider range of consumers.
Sports cars: Flow-formed wheels are commonly used in sports and high-performance vehicles where low weight and high strength are critical.
Racing wheels: Racing cars often use flow-formed wheels to reduce weight while maintaining strength.
Aftermarket alloy wheels: For customers looking for lightweight and durable aftermarket wheels, flow forming is a preferred choice due to its cost-effectiveness.
Flow forming is an ideal solution for drivers who want high-performance wheels but need a more affordable option than full forging.
Gravity casting is one of the simplest and most cost-effective methods for manufacturing alloy wheels. In this process, molten aluminum is poured directly into a mold, and gravity naturally fills the mold cavity. The molten metal cools and solidifies within the mold before the wheel is removed and finished.
While gravity casting is simple, it does not provide the same metal density and strength as low-pressure or flow-forming techniques. However, it remains a popular option for producing wheels in larger volumes at a lower cost.
Low production costs: Gravity casting is one of the most affordable methods, making it ideal for manufacturers seeking to produce wheels at a low cost.
Simplicity: The process requires fewer technical steps, making it easier to implement and more accessible to smaller manufacturers.
Decent surface finish: With proper post-processing, gravity-cast wheels can achieve a satisfactory surface finish.
Higher porosity: Gravity casting tends to produce wheels with more air pockets, which can lead to lower strength and increased risk of cracking under pressure.
Heavier wheels: To compensate for the weaker structure, gravity-cast wheels often need to be thicker, making them heavier compared to wheels produced by low-pressure or flow-forming methods.
Economy vehicles: Gravity-cast wheels are typically used in economy vehicles where cost-efficiency is more important than performance.
Budget-friendly aftermarket wheels: Aftermarket companies offering affordable wheels for everyday vehicles often use gravity casting.
Utility vehicles: For non-performance vehicles, gravity casting remains a popular choice due to its low cost.
Gravity casting remains the most affordable method for producing alloy wheels but is less suited for high-performance applications.
Forging is the most advanced and expensive method of alloy wheel manufacturing. In this process, a solid aluminum billet is placed under extreme pressure (up to 10,000 tons), which compresses and realigns the metal’s grain structure, resulting in a highly dense and strong wheel. Forged wheels are known for their exceptional strength, lightweight nature, and superior resistance to cracking and bending.
The process typically involves multiple steps, including CNC machining, to achieve precise dimensions and complex designs.
Unmatched strength and durability: Forged wheels are capable of handling extreme stresses, making them ideal for motorsports and high-performance applications.
Lightest possible weight: The forging process creates extremely strong wheels that are lighter than wheels produced by casting, resulting in improved acceleration, fuel efficiency, and braking.
Highly resistant to cracks and impact damage: Forged wheels are the most durable option, capable of withstanding harsh conditions without breaking or bending.
Customizable designs: The process allows for detailed and customized designs, making forged wheels the go-to choice for luxury and high-end performance vehicles.
High manufacturing costs: Forged wheels are more expensive than cast wheels due to the specialized equipment and labor-intensive process.
Longer production time: Forged wheels require multiple steps, including extensive machining, which makes the process slower compared to casting.
Motorsports and racing cars: Forged wheels are essential for high-performance vehicles where strength and weight are critical factors.
Luxury and high-performance vehicles: Luxury car manufacturers often use forged wheels for their premium models due to the superior strength and performance they offer.
Supercars: Forged wheels are commonly used in supercars where maximum performance and lightweight materials are essential.
Forged wheels are the best choice for performance-driven applications, where weight, strength, and durability are top priorities.
Each alloy wheel molding technique has its own strengths and applications:
Low-pressure casting offers a balance of strength and cost-effectiveness.
Flow forming is ideal for performance wheels needing high strength with low weight.
Gravity casting remains the most affordable option but lacks durability.
Forging provides the best performance but at a higher cost.
