Slides and Cores in Die Casting Molds: A Complete Design Guide

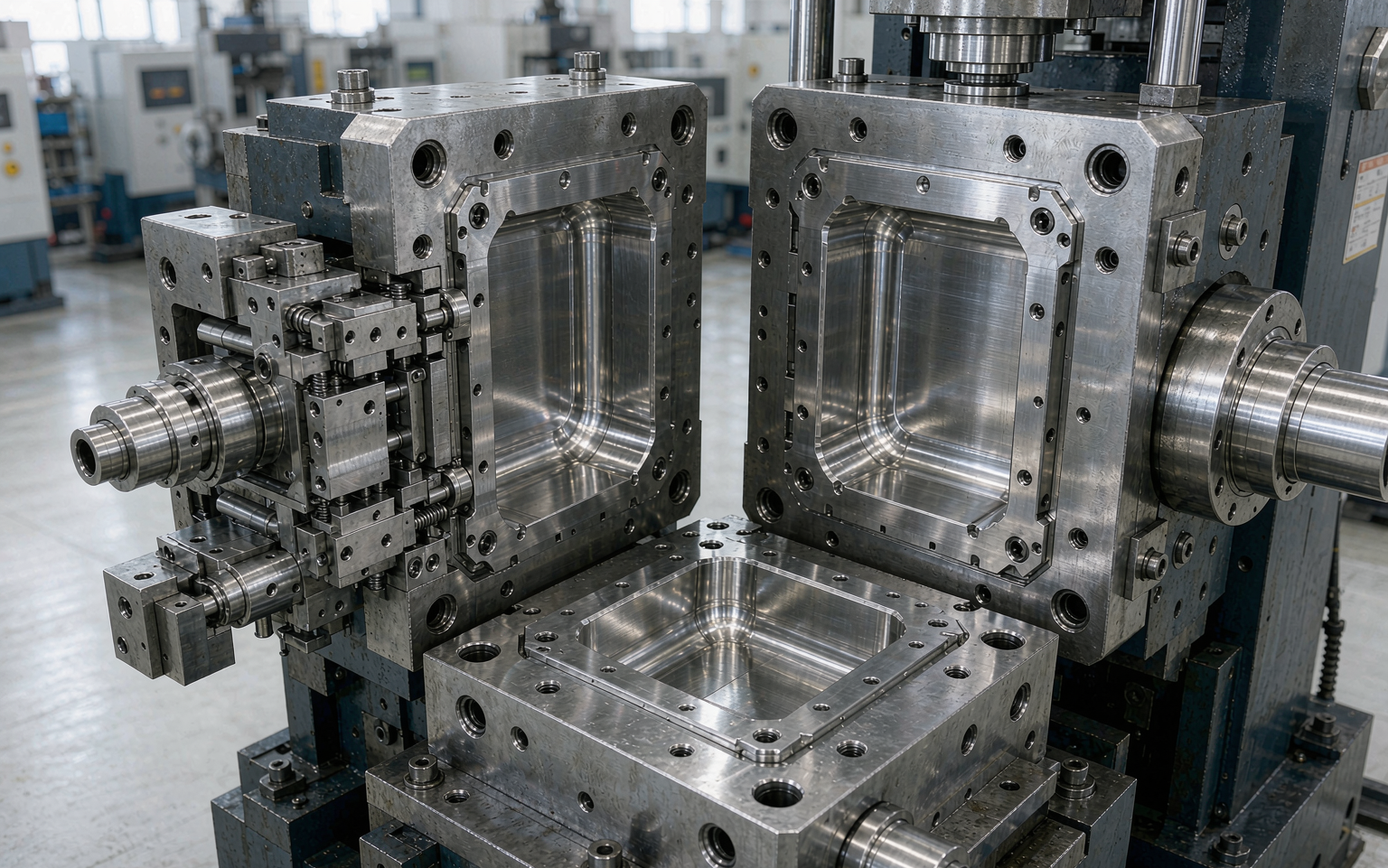

Hero. A die casting mold with a complex slide and core mechanism.

Every die casting mold designer eventually hits the same wall: the part has a hole in the side, a boss, a rib, or a flange that points sideways. You cannot pull it open along the main parting line, and you cannot eject it straight up. That feature is an undercut — and undercuts are what slides and cores exist to solve.

They are also, in most production shops, the single biggest source of mold downtime, flash, and repair cost. A well-designed slide runs millions of shots; a poorly designed one seizes, flashes, or breaks an angle pin within weeks.

This guide covers the two actuation methods, the travel and locking geometry you must calculate, flash control, material selection, cooling, and the failure modes you should design against from day one.

1. What Slides and Cores Actually Do

A slide (also called a slider, side core, or cam) is a movable block mounted in the mold that travels perpendicular to the mold opening direction. As the die opens, the slide retracts out of the way so the casting can be ejected; as it closes, the slide returns to form the side feature.

A core is a male element that forms an internal cavity — a hole, a bore, or a recess. When that cavity points sideways or is deep enough to grip the casting, the core must be movable and is usually pulled by the same mechanism as a slide.

Concretely, slides and cores are required for:

· Side holes, ports, and threaded bosses

· External undercuts and snap features

· Deep internal bores that would otherwise stick or distort on ejection

· Ribs and flanges that cross the parting line at an angle

· Features that trap material against a fixed core

The core design rule is simple and unforgiving: if a feature is not parallel to the ejection direction, it needs a slide or a movable core.

2. Two Ways to Actuate a Slide

There are two dominant actuation systems, and the choice between them is the first — and most consequential — design decision.

2.1 Angle Pin (Mechanical) Actuation

The angle pin (also called an angled guide pin, dog-leg cam, or finger cam) is a hardened pin mounted at an angle in the fixed half of the mold. As the mold opens, the pin engages a hole in the slide and forces the slide to move sideways.

Advantages:

· Zero external power — driven entirely by the clamp opening stroke

· Failsafe sequencing — the slide always retracts before ejection, because retraction is tied to opening

· Lower cost than hydraulic cores

Limitations:

· Short travel. Travel is limited by pin length and angle (see Section 3).

· Timing is fixed. You cannot pull the core before or after the main opening.

· Pin stress. The pin is loaded in bending; too thin or too steep and it breaks.

Angle pins are the default choice for short-travel side features — typically up to roughly 40–50 mm of slide travel.

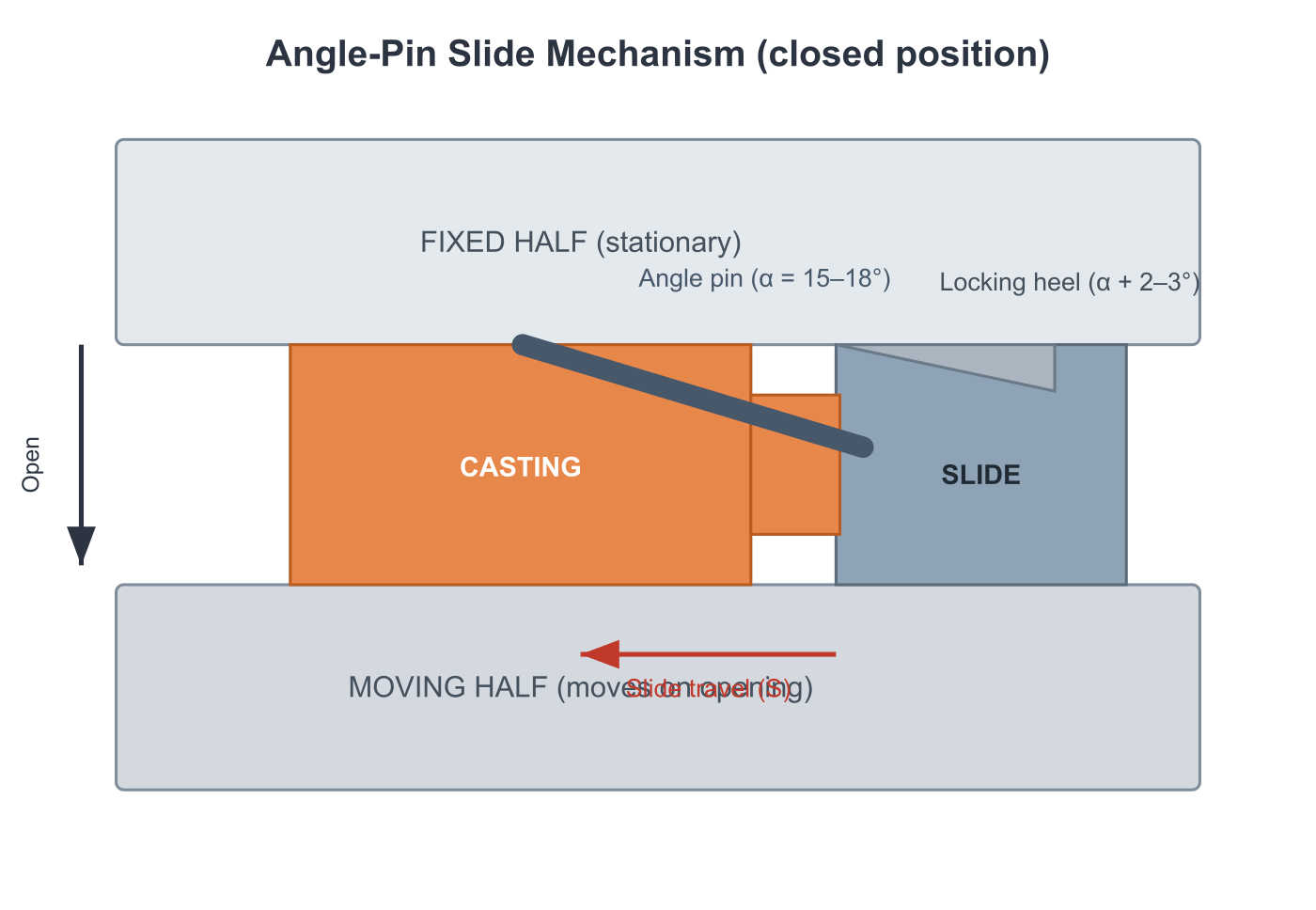

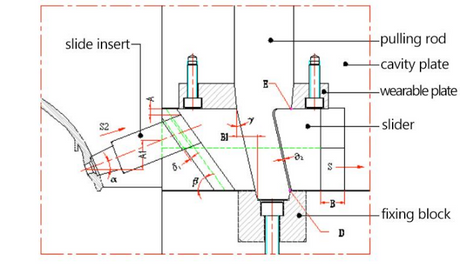

Figure 1. Angle-pin slide mechanism in the closed position. The angle pin retracts the slide as the mold opens; the locking heel (2–3° steeper) carries the injection load.

2.2 Hydraulic Cylinder Core Pull

A hydraulic cylinder mounted on the outside of the mold drives the slide independently.

Advantages:

· Long travel — only limited by cylinder stroke

· Independent timing — pull the core before the mold opens, or before ejection

· Higher force for cores with large projected area or deep engagement

Limitations:

· Higher cost and complexity — cylinders, plumbing, and limit switches

· Sequencing risk — a mis-timed core pull will destroy the mold; this must be interlocked in the machine control

Use hydraulics for long side cores, cores with large projected areas, and any core that must be pulled before the parting line opens (for example, a long core in a deep bore that would bind during opening).

Rule of thumb: mechanical angle pin for short, light slides; hydraulic for long travel, high force, or timing-critical cores.

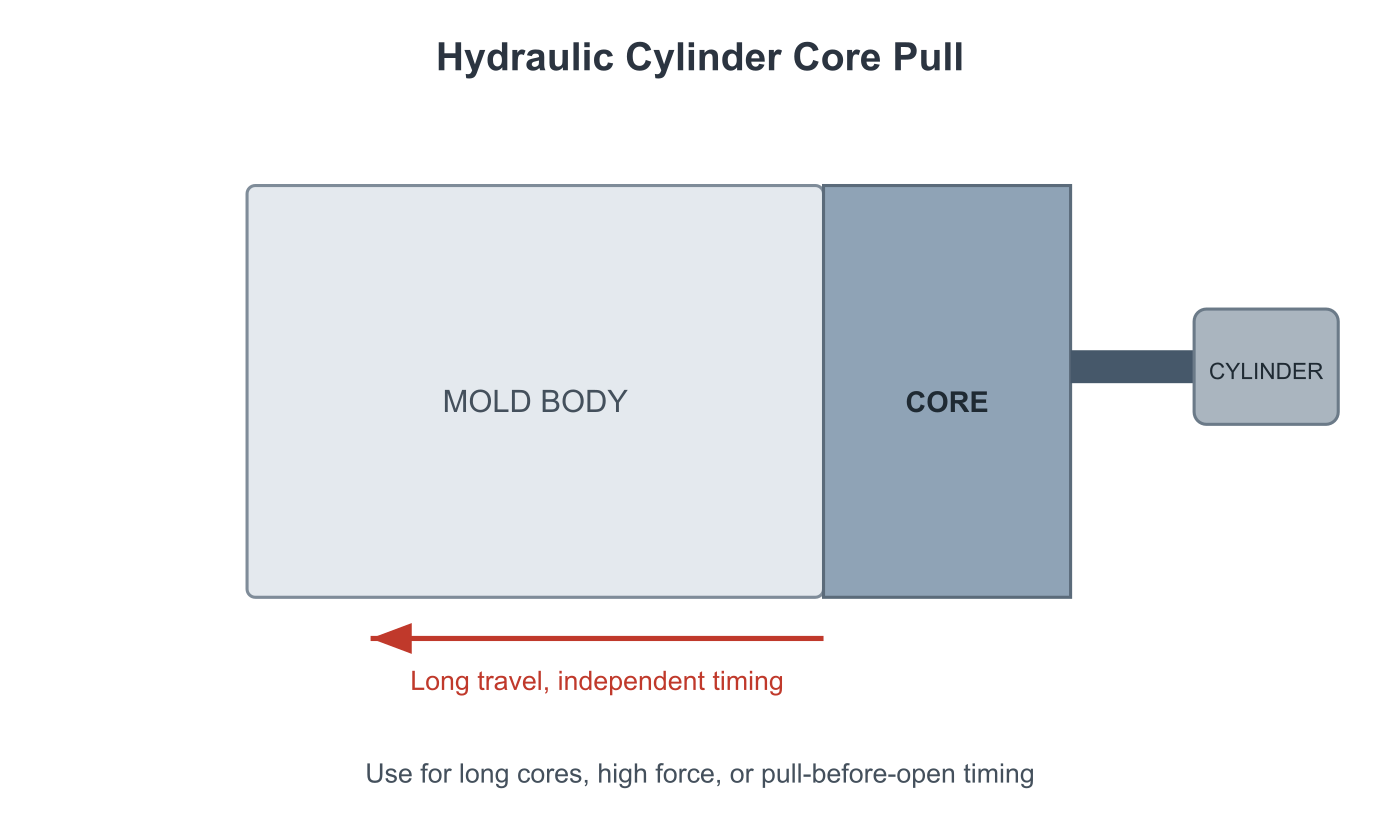

Figure 2. Hydraulic cylinder core pull — used for long travel, high force, or pull-before-open timing.

3. Slide Travel: The Calculation You Must Not Skip

The most common cause of an unusable slide is a travel miscalculation — the slide retracts too little, and the casting hangs up or is gouged on ejection.

The travel for an angle pin is driven by simple trigonometry:

Slide travel  S = d × tan(α)

Where:

· S = lateral travel of the slide (mm)

· d = opening distance during which the angle pin is engaged (mm)

· α = angle pin angle from the opening axis (degrees)

Worked example. An angle pin at α = 18°, engaged for an opening stroke of d = 40 mm, produces:

S = 40 × tan(18°) = 40 × 0.3249 ≈ 13.0 mm

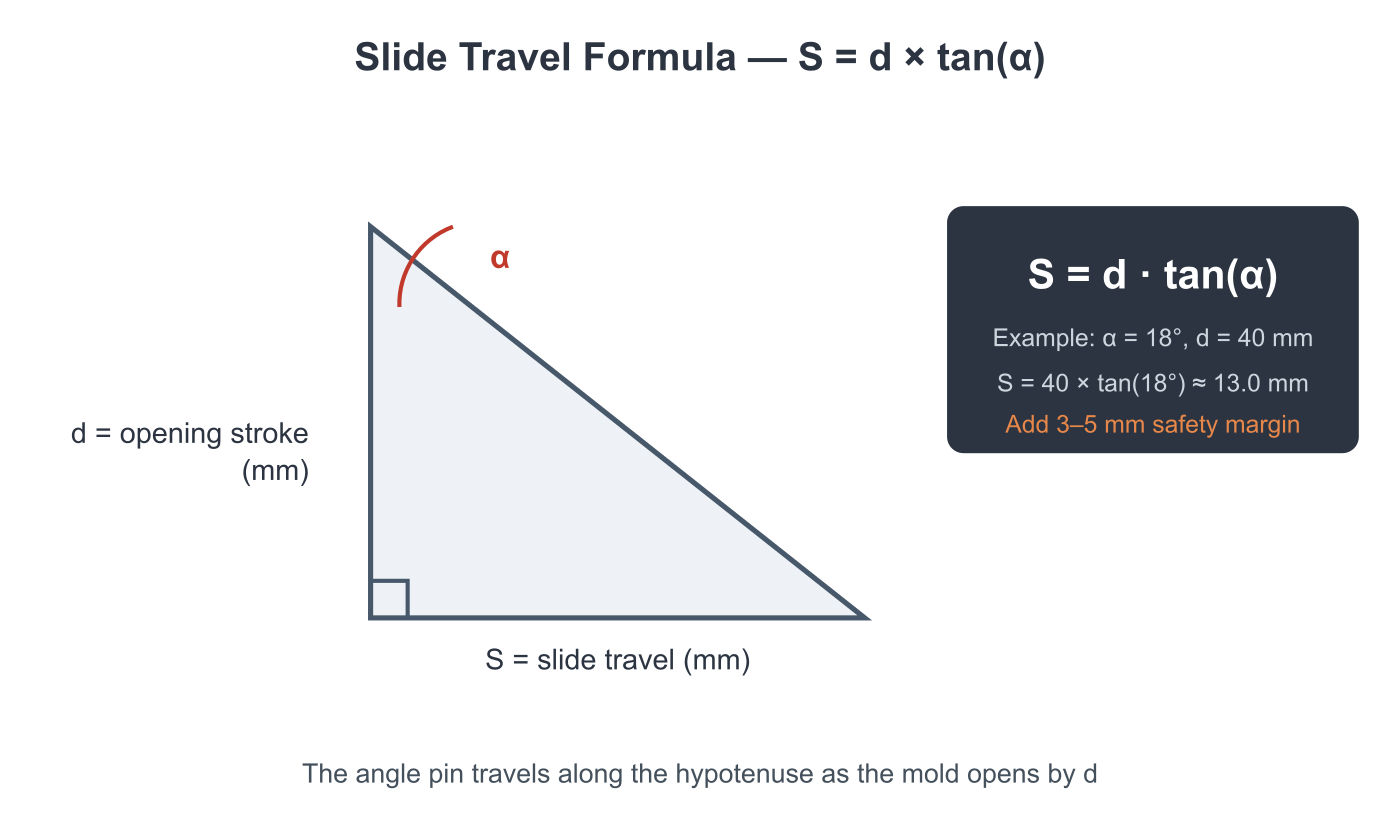

Figure 3. Slide travel is the horizontal leg of the angle-pin triangle: S = d × tan(α).

If the deepest undercut is 10 mm, this leaves only ~3 mm of clearance — too tight. You would either steepen the pin, lengthen the engagement, or switch to a hydraulic core.

Design safety margin: after full retraction, the slide face must clear the deepest point of the undercut by at least 3–5 mm (add more for large castings with thermal growth or ejection travel).

Common angle pin values:

· 10°–25° is the practical range

· 15°–18° is the most common working range

· Above 25°, bending stress on the pin rises sharply and the mechanism tends to bind

4. The Geometry That Keeps a Slide Locked

A slide does two jobs: it moves during opening, and it holds position against several thousand PSI of injection pressure during filling. Those two jobs want different angles, which is why a proper slide has two inclined elements:

4.1 The Locking Heel (Wedge / Lock Block)

The heel is the massive inclined surface on the fixed half that the slide seats against when closed. It carries the injection load, not the angle pin. If you let the angle pin take injection force, it will bend or snap.

Critical rule: the heel angle must be 2°–3° greater than the angle pin angle.

· Angle pin 15° → heel 17°–18°

· Angle pin 18° → heel 20°–21°

This deliberate mismatch means the slide pulls free of the heel's lateral constraint at the very start of opening, before the angle pin starts driving it sideways. If the two angles are equal, the slide binds against the heel and either the pin breaks or the slide seizes.

4.2 Draft and Clearance on Slide-Formed Surfaces

· Draft angle on slide faces: 1°–3° is recommended (0.5° minimum on short, simple features). Undercut features formed by a slide still need draft on the slide's own forming surfaces, or the casting sticks to the slide as it retracts.

· Slide-to-cavity clearance: keep running clearance in the 0.03–0.05 mm range on the parting faces to control flash while avoiding seizure. This is a precision fit — too tight galls, too loose flashes.

· Wear plates (gibs): mount the slide on hardened, replaceable wear plates rather than running steel-on-steel on the mold base. Wear plates should be lubricated (graphite plugs or forced lubrication grooves) and are the designated wear surface.

5. Preventing Flash on Slide Parting Lines

Slides are the number-one flash source in die casting, because they are moving, multi-piece joints exposed to metal pressure. Flash here is not just cosmetic — it welds to the die face, accelerates die wear, and adds secondary trimming cost.

Flash-control checklist:

1. Positive heel seating. The heel must fully seat and clamp the slide before the shot fires; any gap translates directly into flash.

2. Tight, consistent clearance (0.03–0.05 mm) across the entire parting surface.

3. Rigid slide body. Deflection under injection pressure opens the joint line. Size the slide body and heel for the projected area × cavity pressure.

4. Wear plates on all sliding and bearing surfaces, with correct preload.

5. Balanced injection. A gate aimed directly at a slide face will pry it open; orient gates to avoid direct impingement on slide joints where possible.

6. Venting across the slide joint — done deliberately, this relieves trapped air and actually reduces flash by lowering back-pressure.

6. Materials and Heat Treatment

Two notes that matter in production:

· H13 everywhere on the hot face. Slides and cores are in contact with 600–700 °C aluminum; H13's hot strength and thermal-fatigue resistance are the baseline. For high-shot-rate or large structural jobs, upgrade to premium grades (8418, DIEVAR, QRO 90) that hold hardness at temperature.

· Surface treatment is not optional on the mating faces. Nitriding or a PVD coating (AlCrN) on slide faces and core pins resists galling (aluminum cold-welding to steel) and soldering, which are the two processes that turn a fine-running slide into a seized one.

7. Cooling in Slides — The Detail Everyone Forgets

A slide is a large mass of steel sitting against molten aluminum every cycle. If it is not cooled, it runs hot, expands, and galls or seizes against the cavity and wear plates — the classic "it ran fine in the prototype, then seized in production" failure.

Rules for slide cooling:

· Any slide with a forming face larger than ~2,000–3,000 mm² or holding a large thermal mass should have dedicated cooling.

· Route water lines or bubblers through the slide body, close to the forming surface (12–20 mm behind the face is a working range).

· Use quick-connect couplings and flexible or telescoping connections so the slide can move without leaking.

· Pay special attention to core pins — a deep, thin core pin cannot be cooled with a straight line; use a bubbler (inner tube) or a thermal pin to pull heat from the tip.

· Add thermocouples on large slides; a slide running >40–50 °C hotter than the surrounding die face is a warning sign.

Neglecting slide cooling is the single most common reason a good slide design fails in sustained production.

8. Common Slide and Core Defects — and the Fix

9. FAQ

Q: What is the difference between a slide and a core in die casting?

A slide is the movable block that retracts sideways to release an undercut; a core is the male element that forms an internal hole or cavity. The two work together — a movable core is frequently pulled by the same mechanism that drives a slide.

Q: What angle should a die casting angle pin be?

Practically 10°–25°, with 15°–18° most common. The locking heel should always be 2°–3° steeper than the angle pin so the slide pulls free before being driven sideways.

Q: How do I calculate slide travel?

Use S = d × tan(α), where d is the engaged opening stroke and α the angle pin angle. Add a 3–5 mm safety margin beyond the deepest undercut.

Q: Why does my slide flash?

Almost always insufficient heel clamping, worn wear plates, or slide-body deflection under injection pressure. Check heel seating and running clearance (0.03–0.05 mm).

Q: When should I use a hydraulic core instead of an angle pin?

For travel beyond ~40–50 mm, high projected area, or any core that must be pulled before the parting line opens.

10. Designing Slides That Survive Production

The difference between a prototype slide and a production slide comes down to five disciplines: correct travel math, heel-locking geometry, wear plates with tight clearance, active cooling, and surface treatment against galling. Get those five right and a slide will run millions of shots. Miss any one of them and you will be chasing flash and downtime for the life of the tool.
