In aluminium high-pressure die casting (HPDC), gating and venting are critical to achieving stable cavity filling, minimizing air entrapment and ensuring consistent casting quality.
A successful design does not treat the gating system and venting system separately. Runner layout, gate location, overflow position, venting and vacuum strategy should be developed together based on the expected filling behavior of the casting.

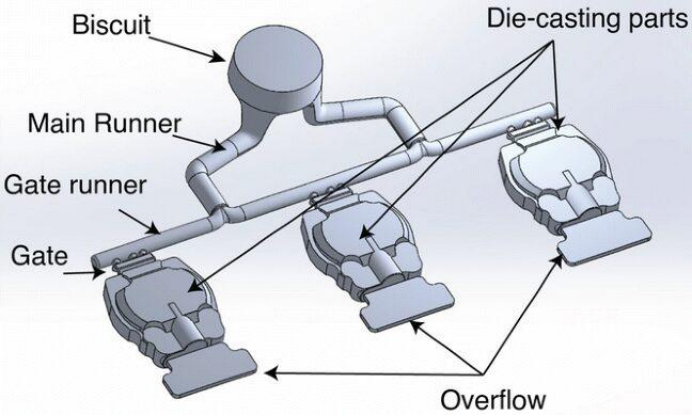

The gating system controls the flow of molten aluminium from the shot sleeve into the die cavity.
Key design parameters include:
l Gate location and direction
l Runner configuration
l Gate cross-section
l Number of gates
l Metal velocity
l Filling time
l Flow balance
For complex aluminium castings, gate location is particularly important. The objective is not simply to fill the cavity as quickly as possible, but to establish a controlled and balanced flow pattern while minimizing turbulence, flow-front collision and air entrainment.
Gate dimensions should be evaluated together with casting geometry, wall thickness, alloy, machine capability and process parameters.
During HPDC filling, the die cavity contains air and residual gases. If these gases cannot escape efficiently, they can become entrapped in the casting.
Potential consequences include:
l Gas porosity
l Blistering
l Reduced mechanical properties
l Leakage
l Surface defects
l Porosity exposed during machining
The venting system should therefore be designed according to the actual filling sequence and last-to-fill areas, rather than simply adding vents wherever space is available.
Depending on the casting requirements, conventional vents, overflow wells, vent blocks and vacuum systems can be combined to improve cavity evacuation.

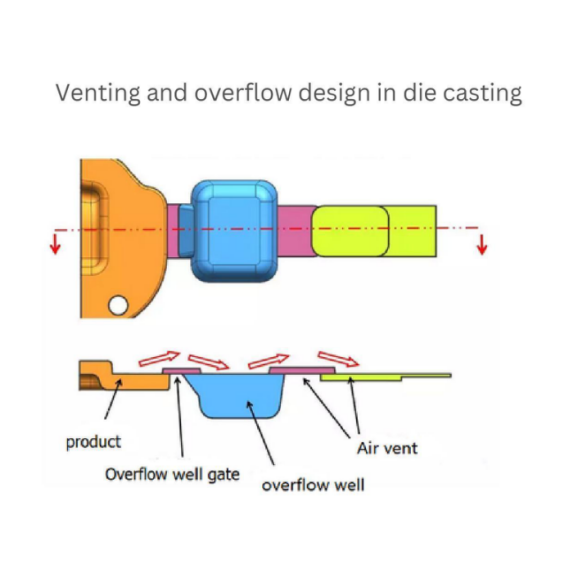

Overflows are an important part of both the filling and venting strategy.
A properly positioned overflow can help:
l Remove initial cold metal
l Collect oxides and impurities
l Guide the flow front
l Improve filling of difficult areas
l Provide an additional path for air evacuation
For complex structural castings, overflow locations should be determined according to the predicted filling sequence, especially around thin-wall sections, deep cavities, ribs and areas where multiple flow fronts converge.
A common mistake is to finalize the gating system first and add the venting system afterward.
In reality, both systems form one filling and exhaust strategy.
A simplified flow concept is:
Metal Flow → Cavity Filling → Last-to-Fill Area → Overflow → Vent / Vacuum
If two or more metal flow fronts close before the trapped air can escape, simply increasing the number of vents may not solve the problem.
The critical question is:
Where will the air be trapped during the actual filling process?
This is why gating and venting design should be validated through filling simulation whenever the casting geometry or quality requirements are demanding.

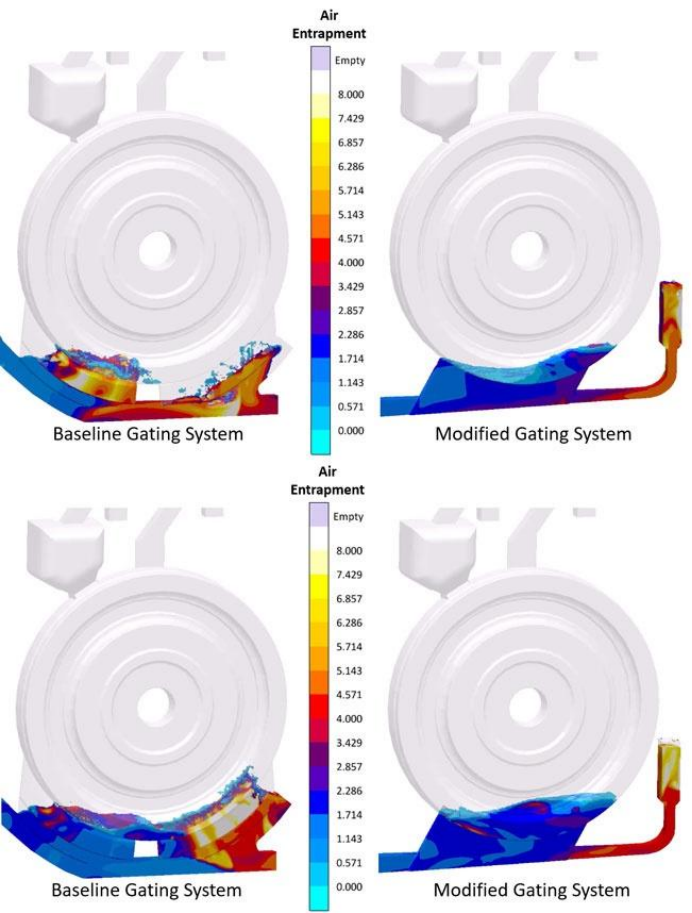

CAE simulation provides an effective method for evaluating gating and venting concepts before mold manufacturing.
Typical HPDC filling analysis includes:
l Filling sequence
l Flow velocity
l Temperature distribution
l Last-to-fill areas
l Air entrapment risk
l Cold shut tendency
l Overflow effectiveness
l Porosity risk
Based on the simulation results, engineers can optimize:
Gate Position → Runner Layout → Overflow Position → Vent Location → Filling Parameters
This simulation-driven approach can reduce physical trial-and-error and improve the probability of achieving the required casting quality during initial mold trials.
For demanding aluminium HPDC applications, conventional venting may not provide sufficient cavity evacuation.
Vacuum die casting can actively remove air from the cavity before and during filling, helping to reduce gas entrapment and improve casting integrity.
It can be particularly beneficial for components requiring:
l Low porosity
l High structural performance
l Heat treatment
l Welding
l Pressure tightness
l High mechanical properties
However, vacuum die casting is not simply a matter of adding a vacuum valve. Gating, overflow, venting, sealing and vacuum control must work together as an integrated system.
An effective gating and venting system should provide:
Controlled metal flow
Balanced cavity filling with appropriate metal velocity.
Efficient air evacuation
A clear exhaust path from the cavity to the overflow and venting system.
Reduced air entrapment
Minimizing the risk of gas porosity and related casting defects.
Optimized overflow design
Using overflow locations to support both filling and air evacuation.
Simulation validation
Using filling and defect analysis to verify the proposed tooling concept before manufacturing.
Gating and venting design in aluminium HPDC is not simply a matter of selecting gate dimensions or adding sufficient vents. It requires an understanding of the interaction between metal flow, cavity geometry, air evacuation, filling parameters and solidification behavior.
For complex aluminium die casting components, the most effective approach is to integrate:
DFM → Gating Design → Filling Simulation → Overflow & Venting Optimization → Cooling Design → Mold Manufacturing → Trial Validation

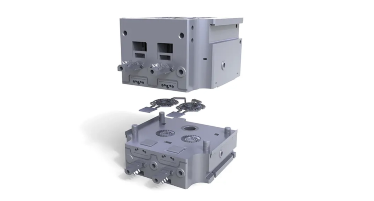

At Superband, gating and venting design is integrated into our aluminium die casting mold development process. With DFM, MAGMASOFT® simulation and tooling optimization, we develop HPDC molds designed for stable filling, reduced defect risk and reliable production performance.
