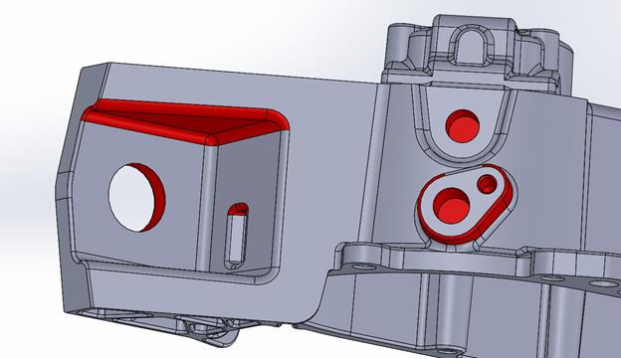

Undercuts are common in complex aluminium die castings, particularly in structural components, motor housings and automotive parts. From a tooling perspective, however, an undercut is not simply a feature that requires a slider.
The more important question is:
Can the feature be formed directly by the die, or does it really require a moving core?
This decision can have a direct impact on mold structure, cycle time, tooling cost, maintenance and die life.
Before adding a slider, the first step should be to review the parting line and opening direction.
A well-positioned parting line can sometimes eliminate an undercut without adding any moving mechanism. This results in a simpler mold with fewer components and less maintenance.
However, changing the parting line can also affect:
l Flash location
l Ejection
l Gate and runner layout
l Casting appearance
l Machining allowance
l Die strength
Therefore, parting-line optimization should be considered together with the complete tooling concept rather than as an isolated decision.

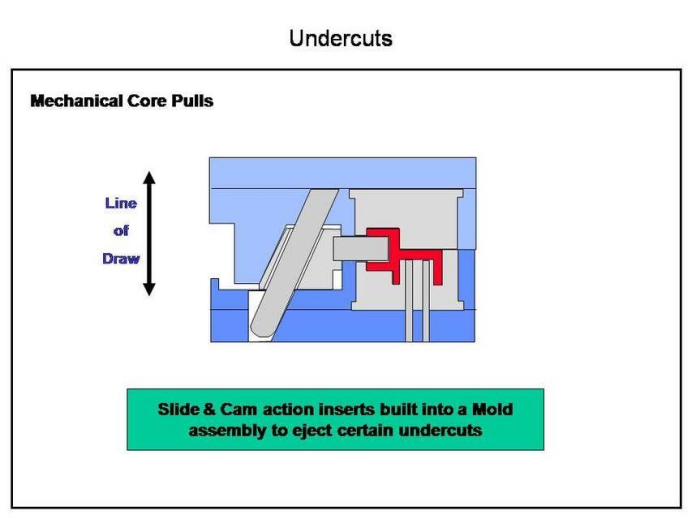

When an undercut cannot be released in the normal die-opening direction, a side core or slider is usually required.

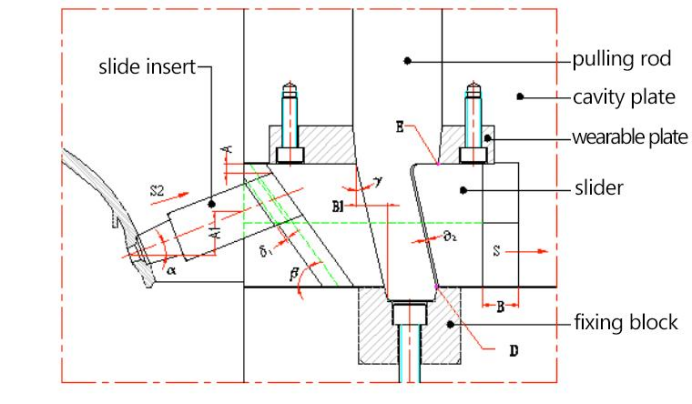

The slider must be designed not only to form the required geometry, but also to withstand injection pressure and repeated thermal cycling.
For HPDC tooling, important considerations include locking, core support, cooling, wear and movement sequence.
A typical sequence is:
Slider Forward → Die Closing → Injection → Solidification → Die Opening → Slider Retract → Ejection
The larger and more complex the slider, the more attention should be given to its stiffness, locking and cooling.
This is an important point in die casting mold design.
Depending on the feature, an undercut may be addressed through:
Parting line modification → Geometry modification → Slider/core → Secondary machining
For example, a small non-functional groove may be redesigned or machined after casting instead of introducing an additional moving core.
On the other hand, a functional mounting feature may require the geometry to be cast directly, making a slider unavoidable.
The best solution therefore depends on the function of the feature, dimensional requirements, production volume and overall tooling cost.
Adding a slider does more than increase the number of mold components.
It can also affect:
Mold size
Additional mechanisms require more installation space.
Cycle time
The slider must complete its movement before the casting can be ejected.
Cooling
Large moving cores can make cooling design more difficult.
Maintenance
Wear surfaces, locking components and hydraulic systems require regular inspection.
Die life
Poorly supported or poorly cooled cores may experience deformation, cracking or accelerated wear.
For this reason, reducing unnecessary moving cores can be just as important as making the slider itself reliable.
The challenge becomes more significant with large structural HPDC components.
Battery trays, motor housings and structural castings can contain multiple side features while requiring tight dimensional control.
In these applications, the tooling team needs to evaluate the interaction between:
Casting Geometry → Parting Line → Slider/Core → Ejection → Cooling → Die Strength
A solution that works for a small casting may not be suitable for a large structural die.
The objective of undercut design is not simply to make the feature possible.
It is to find the simplest and most reliable tooling solution that meets the casting requirements.
At Superband, undercut analysis is incorporated into the early DFM and tooling development stage. We evaluate the casting geometry, parting line, core and slider requirements, ejection, cooling and die structure before finalizing the mold concept.
For complex aluminium HPDC components, this early evaluation can help reduce unnecessary tooling complexity while improving production reliability, maintenance and die life.
A good die casting mold does not simply solve an undercut—it solves it with the least unnecessary complexity.
