In the competitive environment of modern industrial manufacturing, especially in sectors like automotive, aerospace, and energy, the choice of casting method is critical. Among the most commonly used aluminum casting methods are low pressure die casting and gravity die casting. While both are capable of producing durable and reliable components, the differences in quality, repeatability, and complexity make them suitable for different types of applications.
This article explores the key distinctions between low pressure die casting and gravity die casting, with a specific focus on the importance of the LPDC mold in ensuring high-performance, defect-free castings. If you're considering which casting process is best for your project, especially for automotive parts or pressure die casting products, this guide will provide the insights you need to make the right decision.We'll also introduce Superband — a global leader in precision casting mold manufacturing — and how their advanced capabilities in LPDC mold design contribute to consistent, high-quality production.
Before comparing the two casting methods in detail, it's essential to understand how each process works and what makes them unique.
Low pressure die casting is a controlled casting process in which molten aluminum is injected into a reusable steel mold using low air pressure. Typically, the low pressure die casting pressure range lies between 0.3 and 1.5 bar. This pressure gently pushes the liquid metal upward into the cavity of a low pressure die casting mold, creating a smooth and steady flow that drastically reduces turbulence and air entrapment.
The process is automated through a low pressure die casting machine, which accurately controls injection speed, temperature, and cooling time to ensure repeatability and minimal defects. This makes it ideal for producing high-strength, dimensionally accurate aluminum components with excellent surface finishes.
Gravity die casting, also known as permanent mold casting, relies solely on gravity to fill the mold cavity. Molten metal is poured into the top of a gravity die casting mold, and the natural flow of gravity fills the cavity. Unlike pressure-assisted methods, the gravity die casting process is simpler and does not require complex machinery.
While this method is cost-effective and suitable for basic geometries, it is more prone to porosity and less capable of producing thin-walled or complex shapes. Gravity die casting machines are typically low-maintenance and ideal for small to medium-volume production.
To help you make an informed decision, here's a detailed comparison between the two casting techniques based on essential manufacturing criteria:
| Feature | Low Pressure Die Casting (LPDC) | Gravity Die Casting |
|---|---|---|
| Metal Flow Method | Upward flow using controlled air pressure | Downward flow using gravity |
| Mold Type | High-precision LPDC mold | Reusable gravity die casting mold |
| Pressure Range | 0.3 – 1.5 bar | No applied pressure |
| Surface Finish Quality | Excellent | Moderate |
| Porosity Level | Low due to controlled filling | Higher porosity due to uncontrolled flow |
| Dimensional Accuracy | High | Moderate |
| Design Complexity Support | Suitable for intricate, thin-walled parts | Limited to simpler shapes |
| Tooling and Equipment Cost | Higher upfront due to machinery and LPDC mold design | Lower initial setup cost |
| Best Use Cases | Automotive parts, EV motor housings, structural frames | Brackets, basic housings, low-complexity components |
From this table, it’s clear that low pressure die casting provides better control, quality, and flexibility, especially when manufacturing high-demand aluminum components.

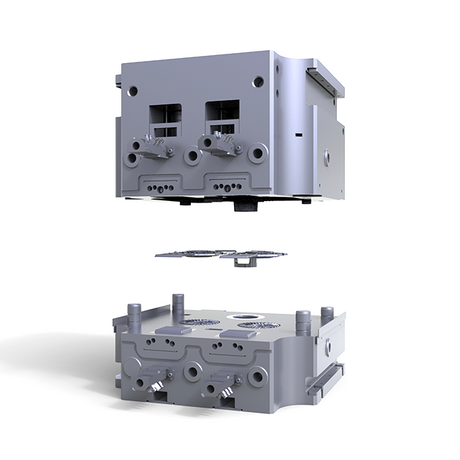

At the heart of every successful low pressure casting operation is the LPDC mold. Unlike gravity molds, an LPDC mold is engineered to handle complex part geometries, control thermal behavior, and enable repeatable results over thousands of cycles.
Superband, a top-tier low pressure die casting manufacturer based in China, leads the industry in designing and producing custom LPDC molds for a variety of sectors. With over 30 years of experience and global clients across 20+ countries, Superband focuses on high-performance casting applications, particularly in the automotive and new energy fields.
Their molds are used in:
Aluminum alloy wheel production
Electric vehicle motor housing casting
Structural aluminum subframes
Battery tray enclosures
Each mold is developed using advanced CAD/CAM software and validated through mold flow simulation and real-time casting trials. With 17+ low pressure die casting machines (ranging from 350T to 3050T) and over 100 CNC machining centers, Superband ensures every LPDC mold meets the highest international standards.
One of the biggest differentiators between low pressure die casting and gravity die casting lies in the consistency of the output. LPDC molds, when integrated with a low pressure die casting machine, ensure consistent wall thickness, accurate dimensions, and a smooth surface finish. This reduces the need for post-processing and allows parts to go directly into assembly or final machining.
In contrast, gravity die casting products often require more manual intervention during filling and cooling. This can lead to variability in part quality, especially when producing components with tight tolerances or complex shapes. While suitable for less demanding applications, gravity casting doesn’t provide the same level of repeatability as LPDC.
Automotive parts are among the most demanding when it comes to casting requirements. Whether it's a suspension arm, alloy wheel, or EV motor enclosure, the part must be lightweight, strong, and defect-free.
Low pressure die casting is widely used in:
Electric vehicle motor housings
Lightweight subframes for hybrid and EV platforms
Aluminum wheels for both passenger and commercial vehicles
Battery enclosures and thermal management structures
Gravity die casting, while still relevant, is mostly used for non-structural or cosmetic parts that don’t require high mechanical strength.
Modern manufacturers benefit from the integration of design software and casting simulation tools in the LPDC workflow. Tools like mold flow analysis and thermal mapping enable engineers to optimize the mold design, predict potential defects, and adjust process parameters before production begins.
The ability to simulate the entire low pressure die casting process offers significant advantages:
Reduced trial-and-error during mold development
Faster time-to-market
Improved first-pass yield
Enhanced part performance
Superband incorporates these simulations into every LPDC mold project, ensuring that the final mold design delivers maximum efficiency and longevity.
When selecting a casting method, ask yourself the following:
Do your parts require tight dimensional tolerances?
Are you producing thin-walled or complex geometries?
Is part strength and durability a top priority?
Are you planning medium to high production volume?
If the answer to any of these is yes, then low pressure die casting with a precision LPDC mold is likely the better choice. Gravity casting may be more economical for basic parts or limited runs but lacks the flexibility and precision required for high-end applications.
Q1: What is the major benefit of using an LPDC mold over a gravity mold?
A1: An LPDC mold offers superior dimensional control, supports complex geometries, and enables low-defect casting. This results in high-quality, repeatable parts ideal for structural and performance-critical applications.
Q2: Can gravity die casting produce parts with the same quality as low pressure die casting?
A2: Not typically. Gravity die casting is more prone to porosity and dimensional variation due to the uncontrolled nature of metal flow. LPDC provides better quality, especially for high-performance or load-bearing parts.
Q3: What’s the typical low pressure die casting pressure range?
A3: The injection pressure in low pressure casting usually ranges from 0.3 to 1.5 bar. This gentle pressure ensures smooth mold filling and reduces turbulence and gas entrapment.
Q4: Why is low pressure die casting preferred for automotive parts?
A4: Automotive components often require high strength, precise dimensions, and excellent fatigue resistance. LPDC meets all of these requirements, making it the preferred method for casting aluminum automotive parts.
Q5: How does Superband ensure the quality of their LPDC molds?
A5: Superband combines simulation-based mold design, in-house casting trials, and high-end CNC machining to deliver LPDC molds that meet global quality standards. Their molds are tested under actual production conditions before shipment.
When comparing low pressure die casting vs gravity die casting, the advantages of LPDC become clear—especially when it comes to quality, repeatability, and suitability for complex aluminum components. The LPDC mold is the cornerstone of this process, offering manufacturers the precision and durability needed to meet the demands of today’s most advanced industries.
For companies looking to optimize their aluminum casting operations, investing in LPDC technology—and working with an experienced low pressure die casting manufacturer like Superband—can deliver measurable gains in product quality, efficiency, and cost-effectiveness.
Whether you're producing electric vehicle components, structural automotive parts, or high-performance aluminum castings, LPDC is the process that delivers precision without compromise.
