In the evolving landscape of automotive manufacturing, the demand for lightweight, high-strength components has intensified. As electric vehicles (EVs) and fuel-efficient cars become more prevalent, manufacturers are exploring advanced casting techniques to meet these challenges. One such technique gaining prominence is Counter Pressure Casting (CPC). This innovative process, utilizing CPC molds, offers significant advantages in producing critical automotive parts like aluminum steering knuckles, aluminum subframes, and aluminum control arms.
This comprehensive guide delves into the intricacies of CPC molds, exploring their applications, benefits, and how they compare to traditional casting methods like High Pressure Die Casting (HPDC). Whether you're an industry professional or an enthusiast, this article provides valuable insights into the world of counter pressure casting.
Counter Pressure Casting is a metal casting process that involves applying a controlled counter pressure to the mold cavity during the pouring of molten metal. This technique ensures a more uniform filling, reduces turbulence, and minimizes the entrapment of gases, leading to higher-quality castings.

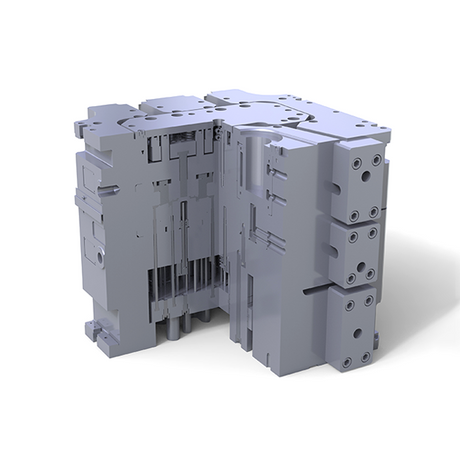

The core component of this process is the CPC mold, designed to withstand and utilize the applied counter pressure effectively. These molds are engineered to produce components with superior mechanical properties, making them ideal for critical automotive applications.
The use of CPC molds in counter pressure casting offers several distinct advantages:
Enhanced Mechanical Properties: The controlled solidification process results in finer grain structures, leading to improved strength and durability.
Reduced Defects: By minimizing turbulence and gas entrapment, CPC molds produce castings with fewer porosities and inclusions.
Improved Surface Finish: The smooth flow of metal into the mold cavity ensures a superior surface finish, reducing the need for extensive post-processing.
Consistency and Repeatability: The controlled environment of CPC allows for consistent production of high-quality components across multiple batches.
CPC molds are particularly beneficial in manufacturing critical chassis structural parts, where strength, weight, and reliability are paramount. Key applications include:
Aluminum Steering Knuckles: These components connect the wheel to the suspension system and must withstand significant stress. CPC molds ensure the production of steering knuckles with the necessary strength and precision.
Aluminum Subframes: Serving as the backbone of the vehicle's chassis, subframes require high structural integrity. CPC molds facilitate the creation of lightweight yet robust subframes.
Aluminum Control Arms: Control arms are essential for maintaining proper wheel alignment and handling. The enhanced properties achieved through CPC molds contribute to the durability and performance of these parts.
While both CPC molds and High Pressure Die Casting (HPDC) molds are used in the production of automotive components, they differ in several key aspects:
| Feature | CPC Molds | HPDC Molds |
|---|---|---|
| Pressure Application | Controlled counter pressure | High injection pressure |
| Defect Reduction | High | Moderate |
| Mechanical Properties | Superior | Good |
| Surface Finish | Excellent | Good |
| Process Control | High | Moderate |
| Suitable for Complex Parts | Yes | Yes |
| Production Volume | Medium to High | High |
The choice between CPC and HPDC molds depends on the specific requirements of the component, including desired mechanical properties, complexity, and production volume.
Foshan Nanhai Superband Mould Co., Ltd. is a leading manufacturer specializing in the design and production of CPC molds for automotive applications. With over 30 years of experience, Superband offers comprehensive solutions, including:
Product Design and Development: Collaborating with clients to design components that meet specific performance and weight requirements.
Mold Design and Manufacturing: Utilizing advanced CNC machining equipment to produce high-precision CPC molds.
In-House Mold Trials: Conducting thorough testing to ensure mold performance and component quality.
Technical Support: Providing ongoing assistance to optimize casting processes and address any challenges.
Superband's commitment to quality is demonstrated through certifications such as ISO 9001:2015, VDA 6.4:2017, and IATF 16949:2016.
Q1: What is a CPC mold?
A1: A CPC mold is a specialized casting mold designed for use in Counter Pressure Casting processes. It enables the application of controlled counter pressure during the casting cycle, resulting in high-quality aluminum parts with enhanced mechanical properties.
Q2: How does CPC improve the quality of aluminum castings?
A2: By applying counter pressure, CPC molds ensure a more uniform filling of the mold cavity, reducing turbulence and gas entrapment. This leads to denser castings with fewer defects and improved mechanical strength.
Q3: What types of automotive components benefit from CPC molds?
A3: Components such as aluminum steering knuckles, aluminum subframes, and aluminum control arms benefit significantly from CPC molds due to the enhanced strength, durability, and precision they offer.
Q4: How does CPC compare to traditional casting methods?
A4: Compared to traditional methods like High Pressure Die Casting, CPC offers better control over the casting process, resulting in parts with superior mechanical properties, reduced defects, and improved surface finishes.
Q5: Where can I find CPC molds for automotive applications?
A5: Companies like Superband Mould Co., Ltd. specialize in designing and manufacturing CPC molds for various automotive components.
Counter Pressure Casting represents a significant advancement in the production of high-quality aluminum automotive components. The use of CPC molds ensures enhanced mechanical properties, reduced defects, and improved surface finishes, making them ideal for critical parts like aluminum steering knuckles, aluminum subframes, and aluminum control arms.
As the automotive industry continues to prioritize lightweight and durable components, the adoption of CPC molds is poised to grow. Manufacturers seeking to stay ahead in this competitive landscape should consider integrating Counter Pressure Casting into their production processes.
