What are the steps in high pressure die casting? Die castingshapes metal fast and with amazing precision.From cars to phones, it powers many industries today.In this post, you’ll learn how the die casting process works.We’ll break down each step and explain what makes it efficient.
Die casting is a fast, reliable way to shape metal.It works by injecting molten metal into a steel mold.The mold, or die, is held under high pressure until solid.This process creates strong parts with tight tolerances.It's ideal for making many identical pieces quickly.
Benefits include:
High-speed production
Consistent part quality
Great surface finish
Minimal machining needed
You’ll often see it used in automotive, lighting, and electronics.
Not all metals work well in die casting. Most parts use non-ferrous metals.These metals melt at lower temperatures and fill molds easily.Here's a look at the common choices:
| Metal | Strength | Weight | Best For |
|---|---|---|---|
| Aluminum | High | Light | Auto parts, housings, aerospace |
| Zinc | Medium | Medium | Small parts, connectors, handles |
| Magnesium | Medium | Very Light | Electronics, automotive trim |
| Copper Alloys | High | Heavy | Electrical components, plumbing gear |
Aluminum is popular for strength and corrosion resistance.Zinc flows well and is great for thin, detailed parts.Magnesium is light and easy to machine.Copper alloys offer excellent conductivity and wear resistance.
This method uses an injection system submerged in molten metal.It pulls liquid metal into the chamber and injects it into the die.The process is fast. It's great for high-volume runs of smaller parts.Because the metal is always molten, cycle times are short.Hot chamber casting works best with low-melting alloys like:
Zinc
Magnesium
Lead-based materials
Typical Products:
Toy parts
Lock housings
Electronic connectors
| Feature | Hot Chamber Method |
|---|---|
| Cycle Speed | Fast |
| Suitable Materials | Zinc, Magnesium |
| Equipment Complexity | Lower |
| Common Applications | Small detailed parts |
Cold chamber machines keep the molten metal in a separate furnace.Operators ladle metal into the chamber before injection.This avoids corrosion of the injection system from higher-temp alloys.It’s slightly slower but handles tougher materials like:
Aluminum
Copper
Brass
Best for: Structural parts, automotive components, industrial hardware.
Key Differences from Hot Chamber:
Metal stays outside the machine until injection
Requires more energy and time per shot
Better for large, high-strength parts
| Feature | Cold Chamber Method |
|---|---|
| Cycle Speed | Moderate |
| Suitable Materials | Aluminum, Copper |
| Equipment Complexity | Higher |
| Common Applications | Engine blocks, pump housings |

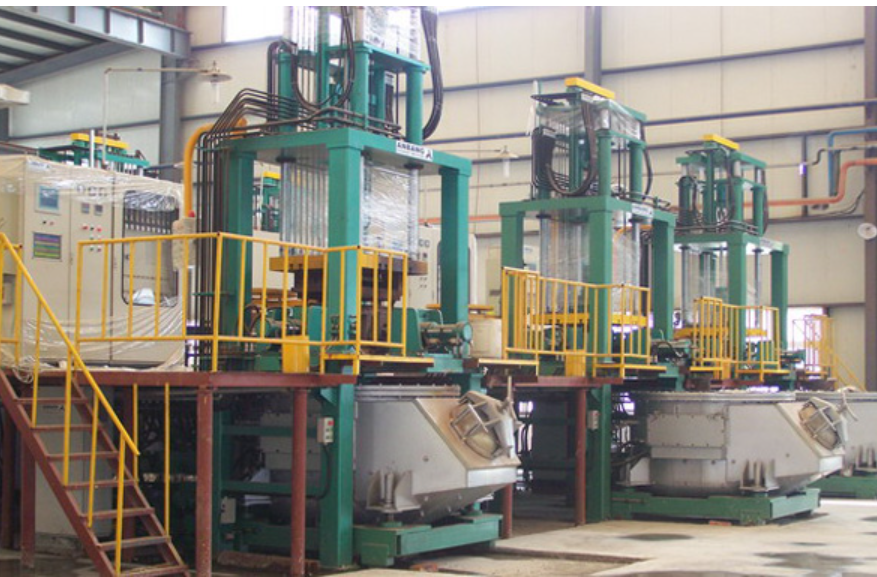

Die casting machines fall into two categories: hot chamber and cold chamber.Hot chamber machines keep the metal in a heated pot and inject it directly.They're best for low-melting alloys like zinc and magnesium.Cold chamber machines melt metal in a separate furnace.They're used for high-temp alloys like aluminum and copper.
| Machine Type | Metals Used | Cycle Time | Common Use Case |
|---|---|---|---|
| Hot Chamber | Zinc, Magnesium | Fast | Small parts, tight detail |
| Cold Chamber | Aluminum, Copper | Slower | Structural and large parts |
You can’t die cast without precise melting.Furnaces must heat metal to the exact temperature—no more, no less.Too hot, and defects form. Too cool, and it won’t flow.Temperature controllers keep the melt consistent for high-quality shots.

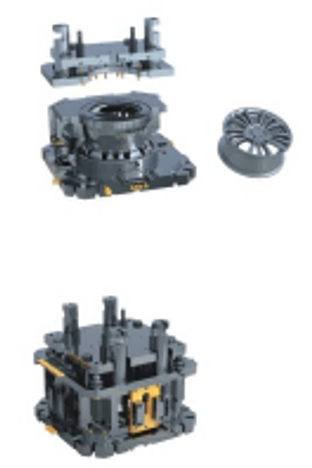

Die life depends on heat management.Mold sprays and die lubricants reduce friction and wear.They help release parts cleanly and prevent sticking.Cooling lines inside the die carry water or oil to regulate temperature.That shortens cycle time and improves part consistency.
After casting, parts don’t come out perfect.You’ll see extra material—called flash—around edges and gates.Trim dies cut off this waste cleanly.Some stations include vibratory finishers, belt sanders, or CNC centers.They smooth surfaces and prep parts for coating or assembly.
Die casting demands consistency. That’s why inspections start early.We often begin with a visual check. It helps spot obvious flaws like cracks or flash.
For internal flaws, X-ray inspection reveals porosity or hidden voids.Pressure testing is key for fluid-tight components like pump housings.Then, we measure dimensions using calipers or CMM systems.If tolerances are tight, surface finish also gets rated—often in microns.
| Inspection Method | Purpose | Tools Used |
|---|---|---|
| Visual Check | Surface flaws, flash, warping | Human eye, magnifiers |
| X-ray Scanning | Internal voids, porosity | Industrial X-ray machines |
| Pressure Testing | Leak detection in sealed parts | Air/water pressure rigs |
| Dimensional Checking | Confirm part tolerances | Calipers, CMM |
| Surface Finish Analysis | Ensure cosmetic quality | Profilometer, visual scale |
Porosity is a big one. It forms when gas gets trapped during solidification.Lowering injection speed or using better venting can help reduce it.Cold shuts occur when two metal fronts don’t fuse. Usually from low temperature or slow fill speed.Fix it by increasing melt temperature or redesigning gates.Misruns show up when the metal doesn’t completely fill the mold.Raising pressure or improving die preheat often solves this.Shrinkage causes internal cavities. Poor cooling control is often to blame.Adding risers or adjusting solidification time improves the outcome.
| Defect | Cause | Prevention Strategy |
|---|---|---|
| Porosity | Gas entrapment | Better venting, degassing, vacuum |
| Cold Shut | Incomplete fusion of metal fronts | Raise fill speed, increase temp |
| Misrun | Incomplete mold filling | Boost pressure, preheat mold |
| Shrinkage | Uneven solidification | Modify cooling rate, use chill lines |
Die casting produces parts with precise shapes and fine details.You get tight tolerances—often within ±0.1 mm or better.That means less need for reshaping or rework later.The smooth surface finish is ideal for decorative or visible components.
| Feature | Typical Result |
|---|---|
| Dimensional Tolerance | ±0.1–0.2 mm |
| Surface Roughness | 1–2 microns Ra (as-cast) |
Once the die is made, every part comes out nearly identical.That’s perfect for large production runs needing consistency.High-pressure machines produce hundreds of parts per hour.It’s one of the most scalable methods in modern manufacturing.
Die-cast parts come out close to net shape.Most need little or no extra machining.That saves time, tools, and money during production.Less post-processing also means fewer defects and waste.
Before production starts, you need to build precision steel molds.These molds are expensive and time-consuming to produce.If you're making only a few parts, it’s hard to justify the cost.For high-volume runs, the cost spreads out and becomes efficient.
| Item | Approximate Cost (USD) |
|---|---|
| Simple die mold | $5,000–$15,000 |
| Complex multi-cavity | $30,000–$100,000+ |
Die casting works best with metals like aluminum and zinc.It doesn’t handle ferrous metals like steel or iron well.Why? The high temperatures needed would damage the die.So if you need steel parts, you'll need a different process.
Die casting thrives on repetition—thousands of parts at a time.For short runs, the setup and mold cost may outweigh benefits.Also, super intricate shapes may need extra machining afterward.Undercuts and deep cavities are harder to form in closed dies.
Die casting shines in industries where strength meets precision. Let’s explore where this process makes the biggest impact.
Automakers rely on die casting for strength and consistency.
Parts like gearboxes and transmission housings are cast in aluminum or magnesium.
It keeps them light but tough—perfect for fuel efficiency and safety.
| Component | Common Alloy | Reason for Use |
|---|---|---|
| Engine Housing | Aluminum | Lightweight and heat-resistant |
| Transmission Case | Magnesium | Reduces vehicle weight |
Your phone or laptop likely has a die-cast part.
Zinc or aluminum die casting is used for casings and heat sinks.
It helps keep devices compact, cool, and durable.
Thin walls and complex shapes? No problem for die casting.
Factories use pumps, valves, and housings made via die casting.
Why? The parts need to handle pressure and resist corrosion.
Cold chamber aluminum casting offers the right combo of strength and precision.
Even custom components can be made quickly at scale.
Toasters. Blenders. Wall lights. These often use die-cast parts.
Manufacturers love how smooth and ready-to-use the parts come out.
Lighting fixtures benefit from sleek finishes and heat resistance.
The result: longer-lasting, better-looking home products.
Die casting produces excess material—runners, flash, and overflow.
Instead of discarding, most shops use closed-loop recycling systems.
They remelt leftover aluminum or zinc and pour it back into production.
This reduces waste and saves on raw material costs.
| Material | Reusability Rate | Common Scrap Source |
|---|---|---|
| Aluminum | Over 95% | Runners, excess castings |
| Zinc | 98–100% | Trimmed flash |
| Magnesium | 90–95% | Overflow metal |
Modern die casting machines use energy-smart technology.
Servo-driven systems replace older hydraulic ones, cutting idle power use.
High-efficiency furnaces reduce fuel consumption during melting cycles.
Shorter cycle times also help lower total energy per part made.
These upgrades reduce both operating costs and emissions.
Old die lubricants used petroleum-based formulas—messy and toxic.
Newer water-based release agents work cleaner and safer.
They break down faster, leaving less residue inside molds.
That makes maintenance easier and improves part surface quality.
Workers benefit too—less smoke, less smell, and fewer chemical risks.
Die casting shapes metal using heat, pressure, and precision molds.From injection to ejection, each step affects quality.Choose the right process and alloy for your needs.Partner with skilled suppliers to get the best results.
A: Molten metal is injected into a steel mold under high pressure, cooled, then ejected and trimmed into a finished part.
A: Hot chamber is faster and used for low-melting metals like zinc. Cold chamber handles higher-melting metals like aluminum.
A: Yes. Cold chamber die casting is ideal for aluminum alloys in structural and precision components.
A: Recycled scrap metal is reused in closed-loop systems, reducing waste and saving material costs.
