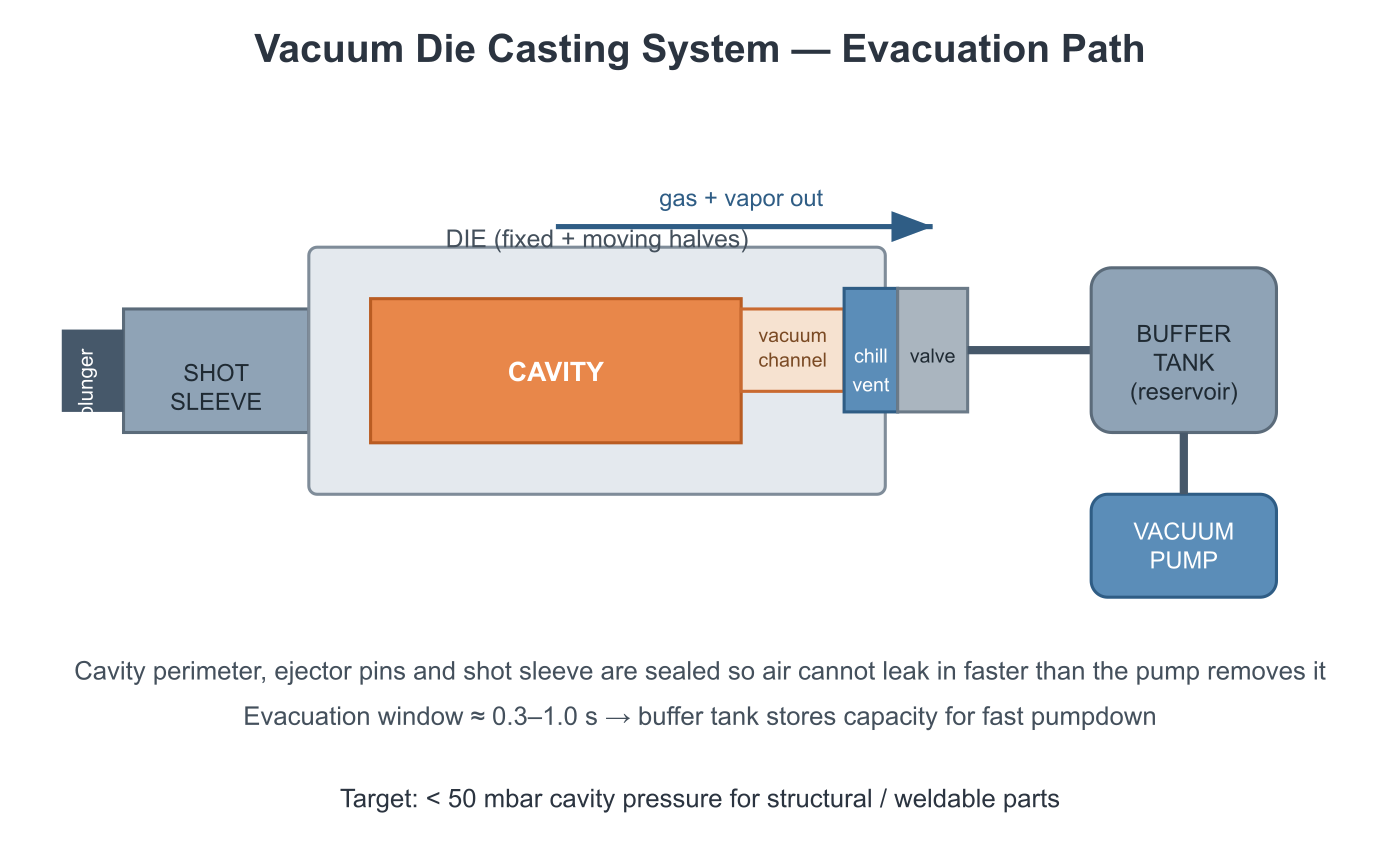

Figure 1. A vacuum die casting system evacuates the shot sleeve and die cavity before and during fill, drawing out air and lubricant vapor through a chill vent.
High-pressure die casting (HPDC) fills a cavity in milliseconds at 30–60 m/s through a narrow gate. That speed is why HPDC is so productive — and why every conventional die casting carries a burden of trapped gas. Vacuum is the technology that removes that burden, transforming die castings from cosmetic, non-weldable parts into structural, weldable, heat-treatable, leak-tight components.
This guide explains what vacuum actually does to the metal, how much it changes the numbers, what it cannot fix, and how vacuum venting and valve design are engineered into the die.
Gas porosity in a conventional die casting comes from two sources, and neither is mysterious — both are built into the process.
Turbulent fill. Molten aluminum enters the cavity at 30–60 m/s. At those velocities the flow is violently turbulent; the metal atomizes, folds, and mechanically whips air into the melt like a foam. Unlike low-pressure or gravity casting, the front is never a smooth, orderly fill.
The shot sleeve is half air. Before injection, the plunger sits behind a partially filled shot sleeve. A typical prefill (fill ratio) of 30–60% means 40–70% of the sleeve volume is air — and most of that air is pushed straight into the die. On top of that, the die lubricant sprayed each cycle vaporizes and adds hydrocarbons to the trapped gas.
The result is measurable: a conventional HPDC casting typically carries 10–30 cm³ of gas per 100 g of aluminum, expressed as porosity of roughly 1.5–4%. That gas is why conventional die castings blister when welded or solution heat-treated, why they leak under pressure, and why their ductility is capped.
Vacuum die casting connects the die cavity (and ideally the shot sleeve) to a vacuum pump through a controlled vent, so that air and vapor are drawn out before and during the fill rather than being compressed into the casting.
Two mechanisms are at work:
1. Less gas to trap. Removing the air means there is simply less gas available to be entrained.
2. Lower back-pressure. The metal front meets less resistance, so thin walls and fine detail fill more easily, and the melt surface oxidizes less.
The vacuum is not "on" continuously — it is timed to the injection cycle (Section 7). A chill vent lets gas pass but freezes off the molten metal the instant it arrives, protecting the valve and pump.
Not all "vacuum die casting" is the same. The achievable cavity pressure — and therefore the benefit — depends on the system.
Vacuum class | Cavity pressure | Typical application |
Low vacuum | 300–500 mbar | General parts, reduced surface porosity |
Medium vacuum | 100–300 mbar | Better mechanicals, some leak-tight parts |
High vacuum | < 50 mbar (often 30–50, some < 30) | Structural, weldable, heat-treatable parts |
Three valve families dominate:
· Mechanical / spring valves — simple, low-cost, moderate sealing; common on medium-vacuum jobs.
· Hydraulically actuated valves — precise opening/closing timing, larger evacuation cross-section; the standard for high-vacuum work.
· Chill vent / chill block — a passive, maintenance-friendly device with narrow labyrinth slots that let gas through and freeze the metal into a thin web that is trimmed with the biscuit.
The vacuum pump is usually backed by a buffer tank (vacuum reservoir), because the useful pumpdown window is only a fraction of a second — the tank stores "vacuum capacity" so the cavity can be evacuated fast enough.
Vacuum is not a cosmetic tweak; it moves the material properties.

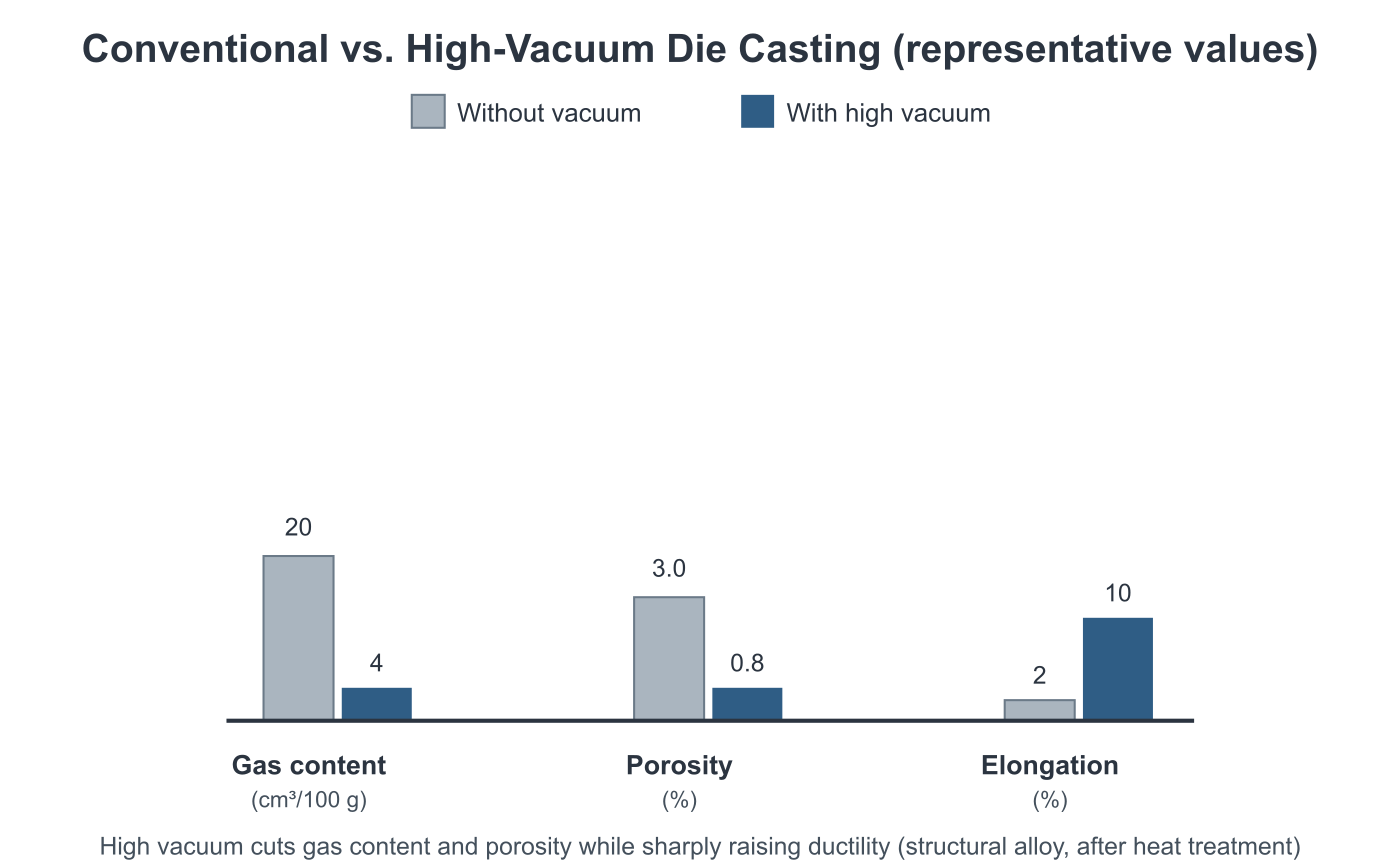

Figure 2. Representative improvements from high-vacuum die casting versus conventional HPDC.
Property | Conventional HPDC | High-vacuum HPDC |
Gas content | 10–30 cm³/100 g | < 5 cm³/100 g (often 2–3) |
Porosity | 1.5–4% | < 0.5–1% |
Elongation (as-cast) | 1–3% | 5–8% |
Elongation (structural alloy, after T5/T6) | not heat-treatable | 8–12% |
Fatigue strength | baseline | up to ~2× (with heat treatment) |
Weldability / heat treat | blisters, rejected | weldable, T5/T6 possible |
(Values are representative industry ranges and vary with alloy and process setup.)
Three consequences deserve emphasis:
· Heat treatability. Trapped gas expands explosively during solution heat treatment, forming surface blisters. Low gas content is what makes T5/T6 — and therefore the big gains in yield and fatigue strength — possible.
· Weldability. The same gas that blisters in a furnace blisters in a weld pool. Vacuum castings can be welded and structural adhesives/joining become viable.
· Leak-tightness. Porosity paths are the classic cause of pressure-test failure in battery trays, water jackets, and valve bodies. Vacuum removes the gas porosity that creates those leak paths.
This is the distinction that separates a professional from a generalist article.
Vacuum removes gas porosity. It does not remove shrinkage porosity.
Shrinkage porosity comes from the metal contracting as it solidifies, and from the last regions to freeze being starved of feed metal. It is governed by solidification geometry and feeding — wall-thickness transitions, hot spots, and the intensification pressure applied by the plunger at the end of the shot.
If a die has an unfed thick section, applying a perfect vacuum will still leave shrinkage porosity there. A high-quality vacuum casting therefore requires both: vacuum for gas, and proper feeding design, thermal balance, and intensification for shrinkage. Treating vacuum as a universal porosity cure is the most common mistake in the industry.
Vacuum only works if the die is engineered for it. The key elements:
· Chill vent / vacuum channel. A generous channel collects gas from the cavity, then narrows into thin slots (typically 0.3–1.0 mm deep) that pass gas but freeze the metal. This is both the vent and the valve's protection.
· Overflow wells. Located at the end of fill, overflows receive the first, coldest, most gas-laden metal and keep it away from the vacuum channel until the cavity is properly filled.
· Cavity sealing. The cavity perimeter must be sealed so outside air cannot leak in faster than the pump removes it — an O-ring or gasket groove on the parting line, plus sealed ejector pins and slides.
· Shot sleeve sealing. Because so much gas comes from the sleeve, high-vacuum systems seal the sleeve with a cover and plunger seals and pull vacuum on the sleeve as well as the cavity.
· Gate and runner design. Runners and gates are sized to fill smoothly and to deliver a coherent metal front to the chill vent.
The entire evacuation happens inside the shot cycle, and the timing is critical:
1. Plunger start (slow shot). Vacuum valve opens, pulling gas from the sleeve and cavity as the plunger advances slowly.
2. Fast shot. The valve stays open through the high-velocity fill, continuing to evacuate as metal sweeps the cavity.
3. Valve close. The valve shuts the instant metal reaches the chill vent — the chill block freezes the metal web, and the valve closes to protect the pump from ingressing metal.
The effective pumpdown window is roughly 0.3–1.0 s, which is exactly why a buffer tank matters: the cavity must be pulled down to target pressure within that window. Systems are commonly tuned by monitoring the cavity pressure curve and adjusting valve timing shot-by-shot.
Vacuum changes the die in a few less obvious ways:
· Parting-line seal groove adds a machining feature and a consumable gasket/O-ring to the tool.
· Ejector pins, slides, and cores must be sealed or fitted with tight clearances so they do not become air leaks.
· Thermal management matters more, because shrinkage — which vacuum does not fix — is controlled by the cooling layout.
· More complex maintenance. Chill vents clog and wear; valves need inspection. The tooling cost and cycle-to-cycle care are higher than a non-vacuum die.
Vacuum adds capital cost, cycle complexity, and maintenance. It earns its keep when the part demands properties only vacuum can deliver:
Use vacuum when the part requires... | Do NOT bother when... |
Welding or T5/T6 heat treatment | Part is purely cosmetic or low-stress |
Pressure/leak tightness (trays, housings, valves) | No leak or porosity specification exists |
Structural / crash performance (elongation) | Ductility and fatigue are not specified |
Thin-wall fill that traps air | Geometry fills easily without it |
For a battery tray, motor housing, or structural node, vacuum is effectively mandatory. For a decorative bracket, it is an unnecessary cost. The decision is driven by the specification, not by habit.
Q: What is vacuum die casting?
A high-pressure die casting process that evacuates air and lubricant vapor from the shot sleeve and cavity before and during fill, reducing gas porosity and enabling weldable, heat-treatable castings.
Q: How much does vacuum reduce porosity?
Typical high-vacuum systems cut porosity from 1.5–4% down to below 0.5–1%, and gas content from 10–30 cm³/100 g to under 5 cm³/100 g.
Q: Does vacuum remove all porosity?
No. Vacuum removes gas porosity but not shrinkage porosity. Shrinkage must be controlled by feeding design and intensification pressure.
Q: Why can vacuum castings be heat treated?
Low trapped-gas content prevents the surface blistering that occurs when conventional die castings are solution heat treated, making T5/T6 possible.
Q: What is a chill vent?
A vent with narrow labyrinth slots that lets gas escape but freezes off the molten metal, protecting the vacuum valve and pump.
Vacuum is the difference between a die casting that can only be filled and one that can be engineered. It removes the gas that blocks welding, heat treatment, ductility, and leak-tightness — the exact properties that modern structural and EV components demand.
But it is not a magic cure. It solves the gas half of the porosity problem; the shrinkage half still depends on sound feeding and thermal design. The professionals who get the best results treat vacuum as one pillar of a system that also includes proper venting, sealed die design, precise timing, and disciplined thermal management.
