Ever wonder how complex metal parts are made fast and accurately?Die castingmakes it possible—from car engines to phone frames.In this post, you'll learn how the die casting process works.We’ll cover each step, tools used, and why it matters today.
Die casting is a fast, precise metal shaping process.It forces molten metal into a steel mold under pressure.This method is great for making parts with tight tolerances.We use it when we need high-volume, repeatable production.You’ll find die cast parts in cars, phones, tools, and more.
Hot Chamber Die Casting
This method works well with zinc and magnesium alloys.
The metal stays in a heated chamber and is injected by a plunger.
Cold Chamber Die Casting
Best for aluminum and other higher-melting alloys.
Molten metal is poured into a shot sleeve before injection.
Gravity Die Casting
Used less often in high-volume runs.
Metal fills the mold by gravity, not pressure.
| Die Casting Type | Metals Used | Key Feature |
|---|---|---|
| Hot Chamber | Zinc, Magnesium | Fast cycle, integrated chamber |
| Cold Chamber | Aluminum, Brass | Handles high-temp alloys |
| Gravity Casting | Aluminum | Low pressure, manual pour |
Common Materials UsedAluminum is light, corrosion-resistant, and strong.
Zinc is ideal for complex, thin-walled shapes.
Magnesium is the lightest, often used in electronics.
These are all non-ferrous, so they resist rust well.
| Material | Strength | Weight | Best For |
|---|---|---|---|
| Aluminum | Medium | Light | Automotive, appliances |
| Zinc | High | Medium | Small, detailed parts |
| Magnesium | Medium | Very Light | Laptops, phones, power tools |
Die casting needs more than just molten metal and a mold.
Here’s the essential equipment that keeps the process running smoothly.

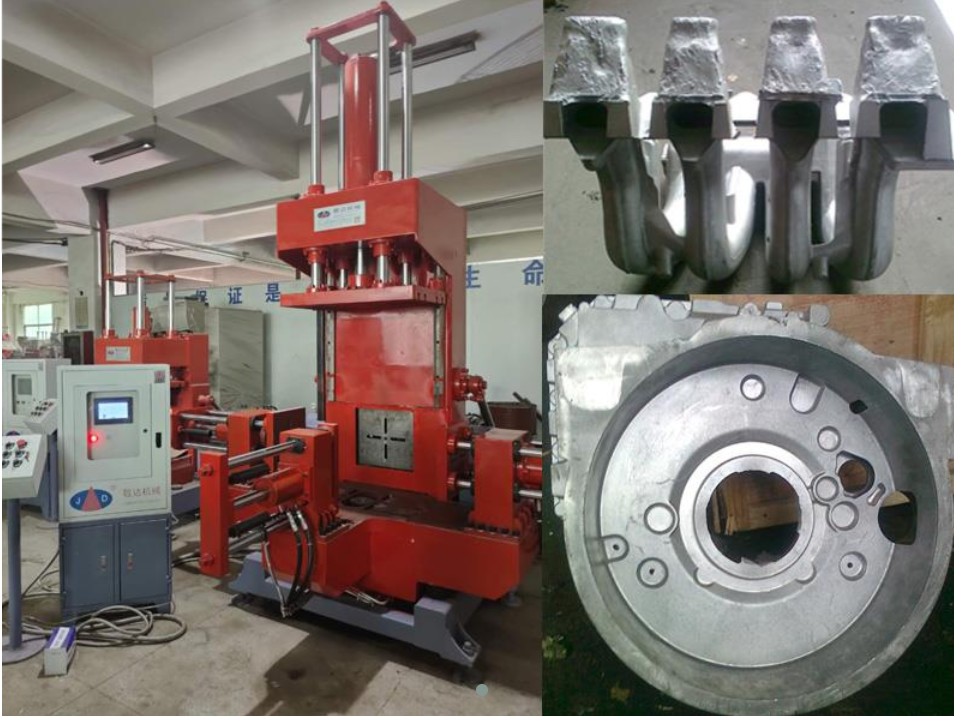

These machines inject molten metal under pressure.
Hot chamber machines are great for zinc and magnesium.
Cold chamber types handle aluminum and higher-temp alloys.
Each machine uses high force to ensure cavity fill.
| Machine Type | Best For | Injection Method |
|---|---|---|
| Hot Chamber | Zinc, magnesium | Plunger inside melt pot |
| Cold Chamber | Aluminum, brass | Ladle-fed into shot sleeve |
The die shapes the final part.
It includes a cavity, ejector pins, and cooling channels.
Dies must withstand pressure and heat without warping.
Mold materials are often hardened tool steels.
The plunger pushes molten metal into the mold cavity.
Hydraulics control the plunger’s speed and pressure.
Precision here affects fill quality and surface finish.
If it’s too fast—air gets trapped. Too slow—parts don’t fill.
The furnace melts the raw alloy.
It must maintain a steady, controlled temperature.
A holding pot keeps metal ready at pouring temperature.
Efficient melting reduces oxidation and energy use.
After casting, parts have excess metal called flash.
Trim dies or hydraulic presses remove this flash quickly.
Finishing stations may include deburring wheels or tumblers.
They prepare parts for painting, coating, or machining.
Die casting cycles are fast—some take less than a minute.
This allows high-volume production without long delays.
Each part is formed quickly using reusable steel dies.
It’s great for industries needing thousands of identical parts.
Die casting produces parts with tight tolerances and smooth finishes.
It often eliminates the need for extra machining.
Surfaces come out clean, ready for painting or plating.
You get both performance and appearance in one step.
| Feature | Die Casting Result |
|---|---|
| Tolerance | ±0.05 mm or better |
| Surface Roughness | Often < 1.5 µm Ra |
| Repeatability | Extremely high |
Tooling can be expensive—but it pays off at scale.
The more you produce, the lower your cost per part.
Metal waste is minimal thanks to precise molds and efficient flow.
It’s one of the most economical options for bulk metal parts.
Parts come out nearly finished from the mold.
Minimal deburring or trimming is usually needed.
Less work means faster delivery and lower labor costs.
Some parts go straight from casting to final assembly.
Before production begins, a precision die must be made.
These dies are usually crafted from hardened steel.
They can cost thousands, depending on part complexity.
This makes die casting less cost-effective for short runs.
Since dies are expensive and setup takes time,
die casting pays off best with high-volume output.
For smaller batches, other methods like sand casting may work better.
During injection, trapped air can form voids inside parts.
These tiny pockets, called porosity, weaken structural integrity.
Porosity can also affect how well parts hold paint or sealants.
To reduce this, engineers optimize fill speed and venting.
| Cause | Result | Mitigation |
|---|---|---|
| Air entrapment | Porosity, weak spots | Add vents, adjust speed |
| Turbulent flow | Cold shuts, poor fill | Use smoother gating design |
Die casting works best with aluminum, zinc, or magnesium.
Why? These metals melt at lower temperatures.
Steel and iron require too much heat, which damages molds.
That’s why die casting isn't used for ferrous alloys.
Die casting is everywhere. It creates strong, accurate, and cost-effective parts across many industries.
Cars rely on cast parts for performance and durability.
Engine blocks handle high heat and stress.
Transmission housings keep gears aligned and protected.
Die casting helps reduce weight and fuel use.
| Auto Parts Made with Die Casting | Material |
|---|---|
| Engine blocks | Aluminum |
| Gear housings | Magnesium |
| Brake components | Zinc alloy |
Devices stay compact and cool thanks to cast metal parts.
Phone frames need precision and lightweight strength.
Connectors and cases use zinc for sharp details.
Heat sinks use aluminum for quick cooling.
Die casting supports safe and reliable tools in healthcare.
Enclosures protect sensitive internal components.
Precision aluminum parts ensure proper fitting and durability.
Smooth finishes reduce contamination risks.
Factories and machines depend on strong metal castings.
Pump bodies resist pressure and corrosion.
Brackets hold equipment in place under load.
High-volume casting makes replacements fast and affordable.
| Industrial Use | Typical Metal Used |
|---|---|
| Pump housings | Aluminum, Zinc |
| Mounting brackets | Magnesium Alloy |
Not all die casting machines work the same way.
Hot and cold chamber systems are used for different metals and needs.
Here’s how they compare side by side:
| Feature | Hot Chamber | Cold Chamber |
|---|---|---|
| Metal Type | Zinc, magnesium | Aluminum, copper |
| Speed | Faster cycle times | Slightly slower |
| Durability | Good for low melting points | Handles higher temp alloys |
| Use Case | Small, complex parts | Large parts, structural use |
This method places the injection system inside the molten metal.
It’s quick, compact, and ideal for low-temperature alloys.
You’ll often find it used in electronics or household hardware.
In this method, molten metal is poured into a chamber manually or automatically.
It’s better for aluminum or copper, which require higher heat resistance.
Cold chamber machines are used when strength and durability really matter.
To keep quality high, parts go through several checks.
Visual Inspection spots surface flaws and obvious defects.
X-ray Testing finds internal problems like porosity or cracks.
CMM (Coordinate Measuring Machine) checks dimensions precisely.
Using multiple inspection methods helps ensure each part meets spec.
| Method | Purpose | When Used |
|---|---|---|
| Visual Check | Detect surface flaws | Post-ejection |
| X-ray | Find hidden defects | Random sampling |
| CMM | Verify tight tolerances | After machining or trim |
Even small issues can hurt part performance or appearance.
Here are some of the most common casting defects:
Porosity: Tiny air pockets inside the part.
Shrinkage: Internal voids caused by cooling too fast.
Cold Shuts: Incomplete fusing of molten metal streams.
These can weaken the part or cause leaks in pressure systems.
To avoid these defects, prevention starts early.
Control die temperature—too hot or cold causes trouble.
Use die vents to let gases escape cleanly during fill.
Design gating systems that guide metal flow smoothly.
Consistent melt quality and proper setup save time and rework.
Die casting produces scrap—runners, flash, rejected parts.
The good news? Most of it gets recycled back into the process.
Aluminum, zinc, and magnesium alloys are all reusable.
This lowers waste, saves raw materials, and cuts costs.
| Metal Type | Recyclability | Typical Scrap Reuse Rate |
|---|---|---|
| Aluminum | Very high | 95%+ |
| Zinc | Excellent | 98%+ |
| Magnesium | Good | 90–95% |
Modern die casting machines use servo motors, not hydraulic pumps.
This reduces energy use during idle and injection cycles.
Newer molds cool faster and require less heating upfront.
Less power used = lower emissions and utility bills.
Release agents and die sprays used to be petroleum-based.
Now, many shops use water-based or biodegradable formulas.
They’re safer for workers and cleaner for the environment.
Eco-coolants also improve equipment lifespan and reduce fluid waste.
Die casting uses heat and pressure to shape metal parts fast.Each step—from melting to trimming—affects quality and speed.Pick the right process and metal for your needs.Work with experts to get strong, reliable die-cast parts.
A: Metal is melted, injected under pressure into a mold, cooled, ejected, and trimmed.
A: Yes, especially using the cold chamber method.
A: It’s best suited for high-volume runs due to tooling cost.
